• Keep the USB data storage device dry
• Use it only within the specified temperature range.
• Do not bend the USB data storage device.
• Protect the USB data storage device from direct impacts.
Step-by-step
Insert and remove the USB data storage device
➜ Only remove the USB data storage device after it has been checked out from the system using the Eject functionality in the Settings menu.
➜ Failure to follow these instructions could result in data loss and/or permanent damage to the USB data storage device.

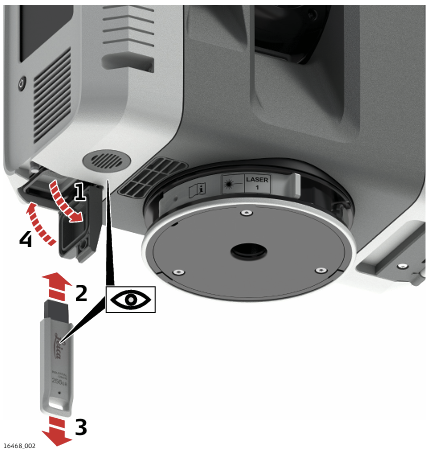

- Open the USB compartment at the bottom of the instrument.
- To insert the MS256 USB data storage device, hold the USB data storage device with the Leica logo facing to the right. Slide it into the USB slot until it clicks into position.
➜ Do not force the USB data storage device into the slot. - To remove the MS256 USB data storage device, slide the USB data storage device out of the USB slot.
- Close the USB compartment.
