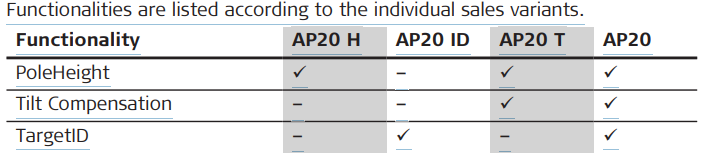

AutoPole functionality
➜ AP20 can only be used in combination with an AP Reflector Pole (CRP4, CRP5, GLS51 and GLS51F).
➜ Establish a Bluetooth connection between the AP20 and the field controller or the total station in order to be operative. Use the connection wizard.

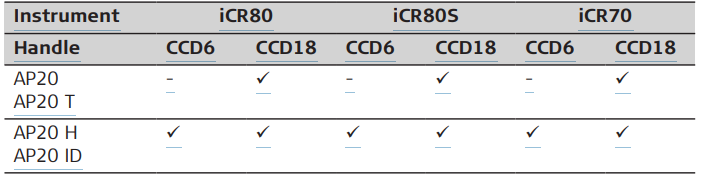

Supported connection types
Supported: AP20 (all variants) with TPS
➜ A robotic TPS must be connected to a controller first. Then connect to AP20.
TS16 and MS60 can also be used.
Not supported
• AP20 (all variants) with GNSS (no PoleHeight)
• Onboard use case
