Overview

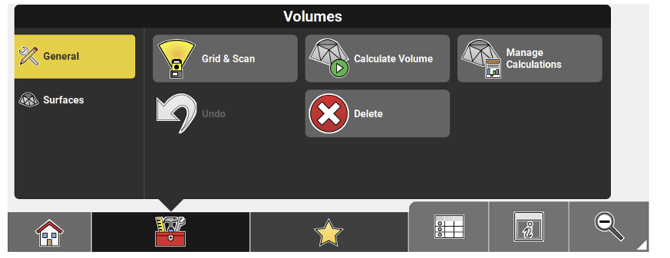

| Function | Description |
|
Calculate Volume
|
Allows you to calculate the volume based on a surface. |
|
Manage Calculations
|
Allows you to view and delete already created • To view details of a calculated result, tap the • To delete a calculated result, tap its name to |
|
Undo
|
Undo previous action. |
|
Delete
|
Remove points/lines from surface. |
to confirm deletion.
| Function | Description |
|
New Surface
|
Measure as many points as required to create a surface. |
|
Edit Surface
|
Tap to edit a selected surface. "Edit Surface" contains the same tools and functions as "New Surface". |
|
Merge Surfaces
|
Allows you to create a surface out of two or more existing surfaces. • Select Merge Surfaces from the Toolbox. • Select at least two existing surfaces to be merged. • To merge the surfaces, tap |
|
Shift Surface
|
Allows you to create a surface by shifting an existing surface. |
|
Calculate Pit/Pond
|
Allows you to define a pond fitting in an existing surface. |
|
Grade Checker
|
Applies minimum and maximum elevation filtering to the map data. Surfaces can be visually checked for, for example, water drains or areas of water accumulation. For detailed information refer to: Using the Grade Checker tool |
|
Trench Creation
|
Allows you to create simple trench design models along a road line or any other line/arc element. The excavation volume for the trench can be calculated and the trench surface can be staked out using the Cut & Fill application. See also: How to Stake Out/Measure Surfaces |
|
Dual Slope Surface
|
Allows you to create sloped, flat surfaces along a line or perpendicular to a line. The surface(s) can be staked out using the Cut & Fill application. See also: How to Stake Out/Measure Surfaces |
.
Toolbox Functions in Surface Creation Mode
| Function | Description |
|
Automatic Logging
|
Set Autologging to On/Off. Select the Log ging Mode from 3D Distance, Distance and/or Height, Time, or Time over a point and define the Interval. Store on demand allows you to record measurements anywhere in between, if enabled. |
|
Intersection
|
Select a first line or two points for it. Select a second line or two points for it. At the position where the two lines are crossing, store the upper or lower intersection point. |
|
Shift Point
|
Allows you to shift the position of a point in all three dimensions by entering shift values. |
