Using USB Memory Devices 3.6

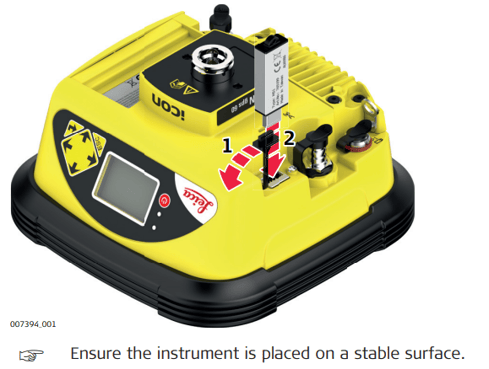

Insert and remove a USB Memory device step-by-step

  1. Detach the USB port cover.
  2. Slide the USB Memory device firmly into the USB host port into position.

    ☞ Take care not to damage the USB Memory device when moving the iCON gps 60 SmartAntenna or when handling around the device.
    ☞ It’s recommended to close the USB port cover when no USB Memory device is used.

Preconditions for using USB Memory devices: USB Memory devices must be formatted in the FAT or FAT32 format. To import data from a USB Memory device to the iCON gps 60 SmartAntenna appropriate folders must be created on the USB device and the files
placed in the correct folder. Refer to 6.6 Import, Export, or Delete Data for further information.
