Using USB Memory Devices 3.2

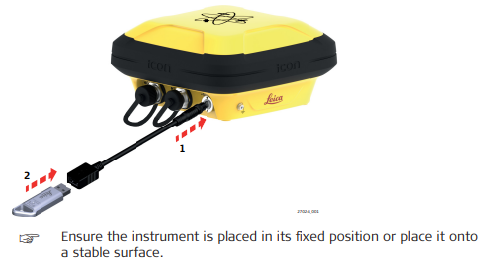

Insert and remove a USB Memory device step-by-step

  1. Unscrew the cap from the USB port.
  2. Plug in the USB adapter cable.
  3. Slide the USB data storage device firmly into the USB host port until it clicks into position.

➜ Take care not to damage the USB data storage device when moving the iCON gps 120 or when handling around the device.

➜ Remove the adaptor cable and close the USB port cover when the USB data storage device is not used any longer.

Preconditions for using USB Memory devices

• USB Memory devices must be formatted in the FAT, FAT32 or exFAT format.
• To import data from a USB Memory device to the iCON gps 120, appropriate folders must be created on the USB device and the files placed in the correct folder.
• Copy coordinate system files to the folder 'CoordinateSystems'. All other files should be copied to the 'System' folder.
