User Interface: Keyboard 3.1

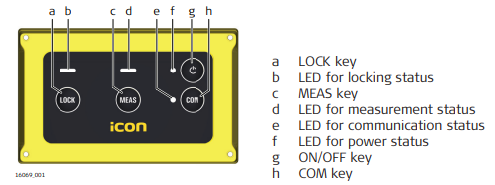

iCR70/iCR80S keyboard

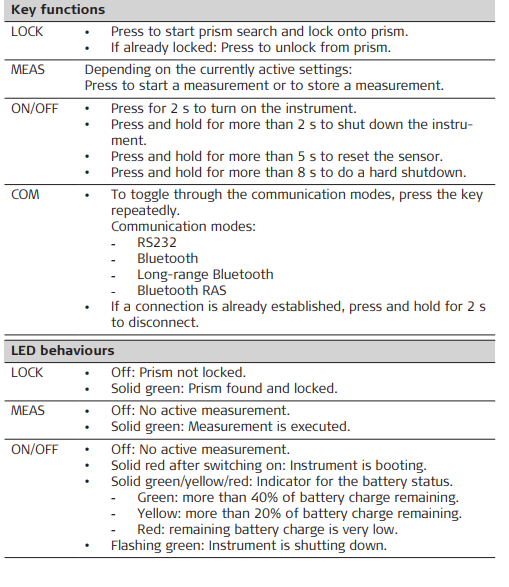

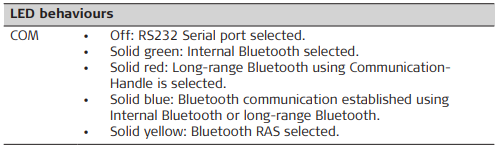

iCR70/iCR80S key functions and LED behaviour: The following description of key functions and LED behaviours applies to the iCR70/iCR80S being connected to a field controller.

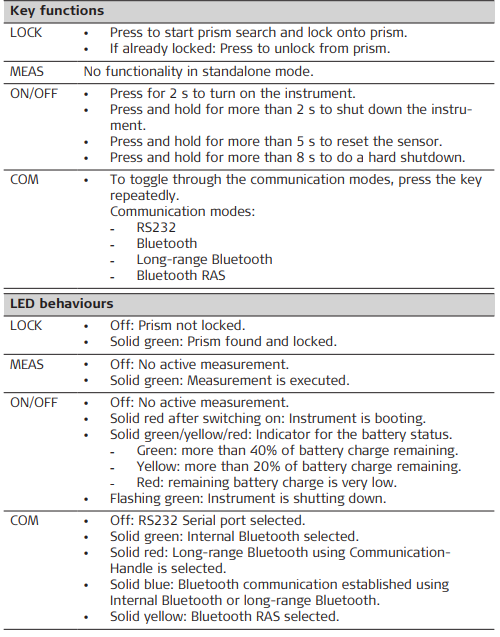

iCR70/iCR80S key functions and LED behaviour in standalone mode: The following description of key functions and LED behaviours applies to the iCR70/iCR80S being used without a field controller.
