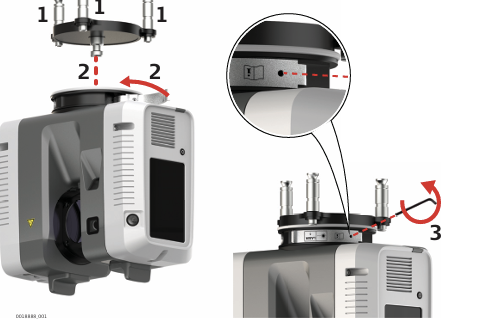

Instrument setup step-by-step
- Tightly mount the GAD121 adaptor plate to the supporting surface.
- Place the instrument onto the GAD121 adaptor plate and secure it by closing the locking lever.
- Keep the locking lever closed and turn the locking screw in anti clockwise direction with the 2 mm allen key until the torque increases. Carefully try to move the locking lever, but do not try to release it.
Instrument mounted sideways or upside down
If the instrument is mounted in a tilted, that is non-upright way, or even upside down, for example at a ceiling, it may drop due to an unintentional release of the locking lever which may result in serious injury.
Precautions:
▸Only use the GAD121 adapter plate for tilted or upside-down mounting.
▸ Make sure that the locking lever is secured by the locking screw from unintended release by turning the locking screw in anticlockwise direction until the locking lever is locked. If the locking lever cannot be moved, it is secured.
