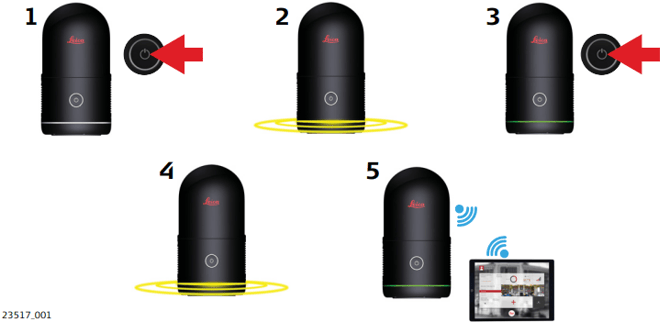

One-button operation
- Press the power button to turn on the BLK360.
- The BLK360 is starting. The ring-shaped LED is blinking yellow.
- If the ring-shaped LED is continuous green, the BLK360 is ready for operation. Press the power button to start recording.
- Recording starts. The ring-shaped LED is blinking yellow.
- The recording is finished. The ring-shaped LED is continuous green. The data transfer starts as soon as the BLK360 is linked to a computing device.
☞ Do not touch or move the BLK360 while the system is recording.
☞ Never touch the laser shield and the cameras. Touching these components can leave, for example, fingerprints and influence the performance negatively.

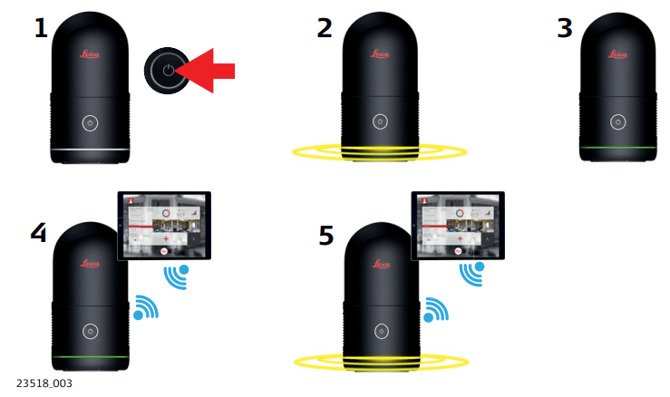

Remote control with Wi-Fi connection: The BLK360 can be remote controlled by a mobile device like a tablet or smartphone when connected via Wi-Fi.
- Press the power button to turn on the BLK360.
- The BLK360 is starting. The ring-shaped LED is blinking yellow.
- If the ring-shaped LED is continuous green, the BLK360 is ready for operation.
- Establish a Wi-Fi connection between the BLK360 and a mobile device.
☞ The best data transfer rate can be ensured if the mobile device is close by.
Ensure to be close to the BLK360 in the direct line of sight and less than 5 m distance. Greater distances and/or objects blocking the direct line of sight between BLK360 and mobile device leads to a slower data transfer. - Start the recording and simultaneous data transfer with the mobile device. The ring-shaped LED is blinking yellow.

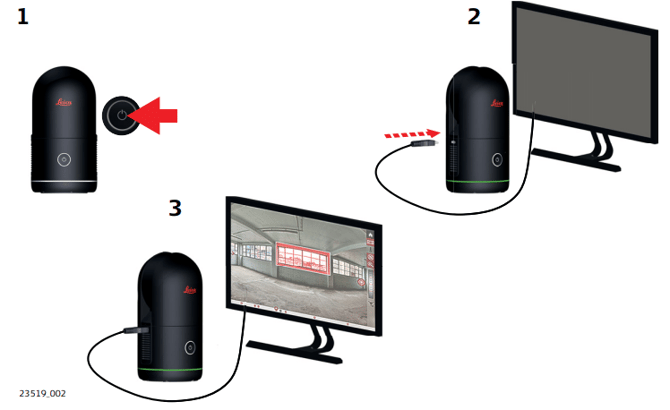

Data transfer with USB connection
The USB connection can be used to transfer data from the BLK360 to a computer or laptop. The USB-C data transfer is possible if the BLK360 is turned on and powered by
the battery, or when is switched off and powered by a computing device (with or without battery inserted).
• High power mode: The data transfer speed is faster. In this mode the device is powered by the battery.
• Low power mode: The data transfer speed is slower, in this mode the BLK360 is powered by the connected computing device.
☞ It is recommended to have the BLK360 turned on (high power mode) during USB-C data transfer to ensure fastest data throughput.
- Press the power button to turn on the BLK360.
- Plug in the USB-C cable and connect to the computing device.
☞ If the USB-C cable is plugged in the BLK360 cannot capture data. - Start the data transfer with the computing device.
Data transfer using Wi-Fi
- Start the BLK360 and wait until the LED is continuous green.
- On the computing device, select Settings and tap Wi-Fi.
- Select the network BLK360-206xxxxx in the Wi-Fi settings to establish the connection.
☞ The number 206xxxxx is the serial number of the BLK360. - Enter the password.

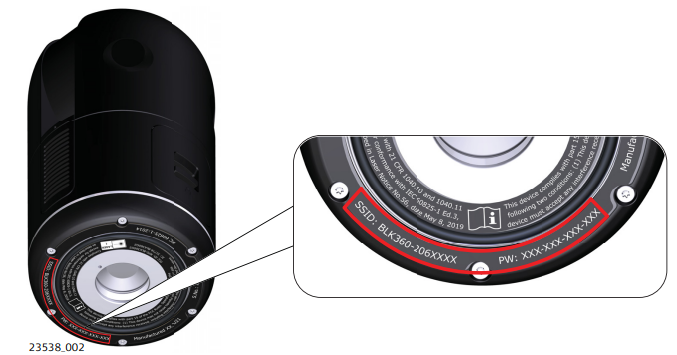

☞ The instrument-specific password is printed on the label on the bottom housing. - Start the app and connect the BLK360.
☞ Entering the Wi-Fi credentials is only required once to connect a computing device to the BLK360. Once the pairing is done, the connection is saved and automatically re-established the next time.
