Transfer Height from Benchmark to Instrument

 General description

Given:

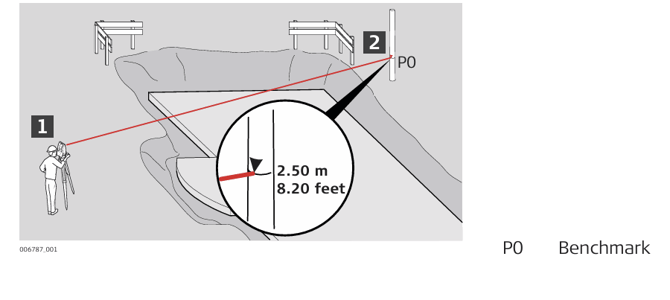

•One benchmark with known elevation.

•Instrument positioned anywhere on site.

 Transfer height from benchmark to instrument step-by-step
  1. Open the Setup app,
    iCON site:  Optionally, select Setup from the Favourites key.

  2. Select Heights - Transfer height anywhere. For an overview of available setup methods refer to General Description.
  3.
  4.
  5.
  6.
  7. Tap  to confirm. The new station height is set.
