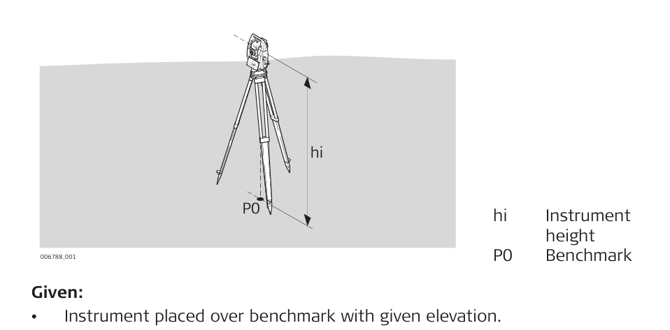

Transfer Elevation to Instrument Placed over Height Benchmark

 General description

Transfer elevation to instrument placed over height bench mark step-by-step
  1. Open the Setup app.
     iCON site: Optionally, select Setup from the Favourites key.

  2. Select Heights - Over reference point. For an overview of available setup methods refer to General Description.
  3.
  4.
  5.
  6. Tap  to confirm. The new station height is set.
