Description
The AP Reflector Pole can be held in a slanting position over the point to be measured without checking the circular bubble on the pole.
When measuring a point, the pole tip must be stable on the point while the pole should be in slight movement. Tilt compensation is indicated by an icon and the Tilt LED and is maintained by natural pole movement, for example while moving to the next point to be measured.
Measurements are reliable and accurate even if the pole is not levelled as the tilt values are calculated by an Inertial Measurement Unit. Tilt values contain
information about the 3D position of the pole.

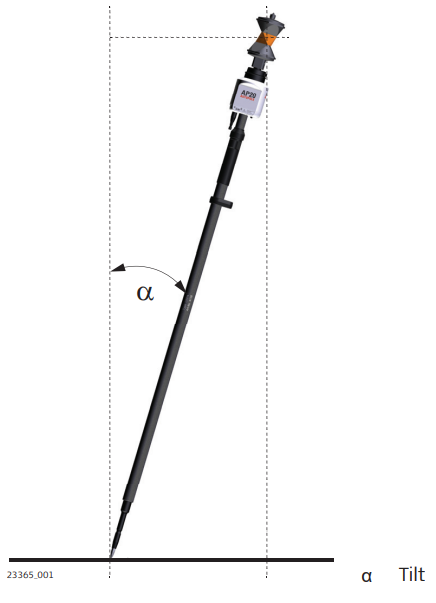

Diagram

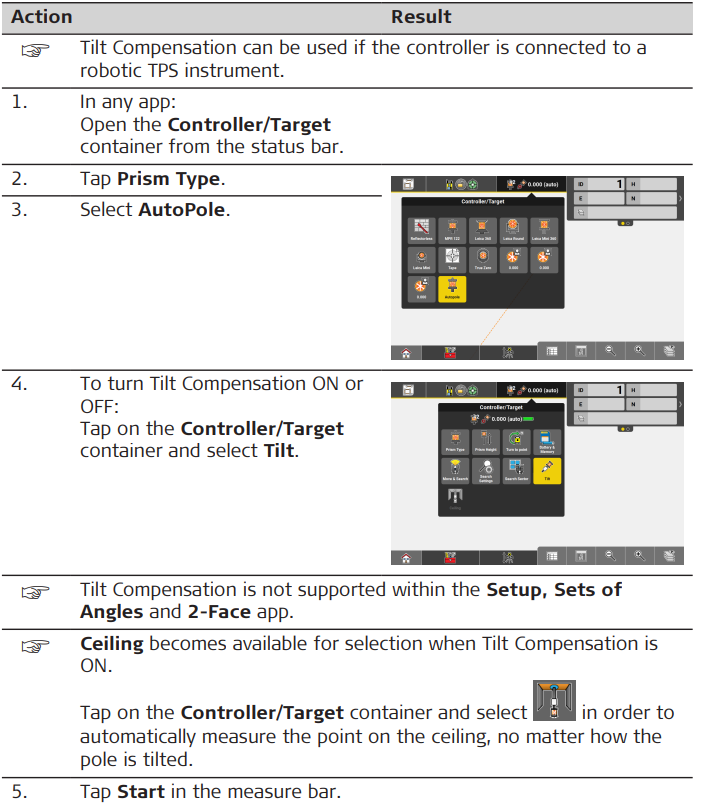

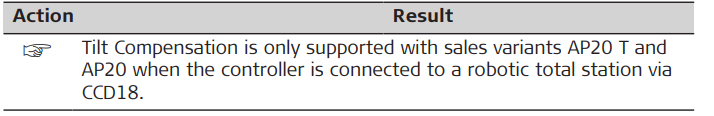

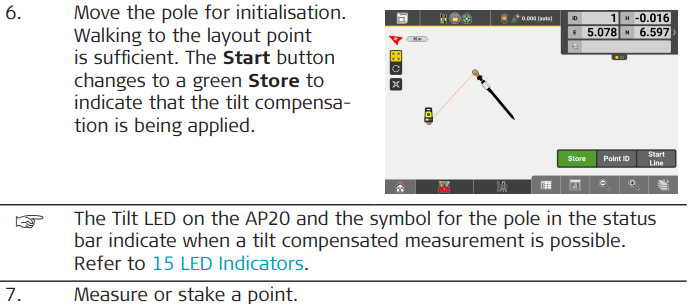

Tilt Compensation step-by-step
