Description- The Antenna Reference Plane:
• Is where the instrument heights are measured to.
• Is where the phase centre variations refer to.
• Varies for different instruments.

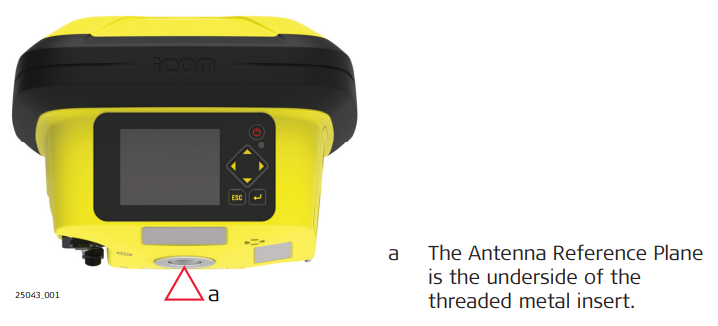

ARP of the antenna
The ARP for the antenna is shown in the diagram.

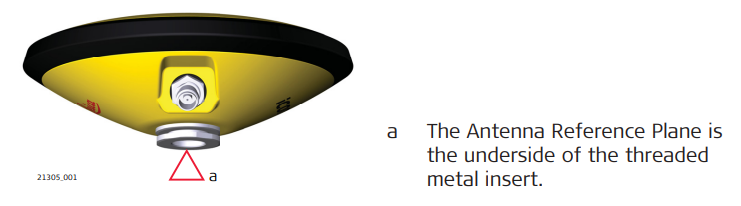

ARP of the antenna
The ARP for the CGA100 antenna is shown in the diagram.
