Technical Data: Tracking Characteristics 10.1.1

Instrument technology: SmartTrack


Satellite reception: Multi-frequency


Instrument channels:
➜ Depending on the satellite systems and signals configured, a maximum number of 555 channels is allocated.

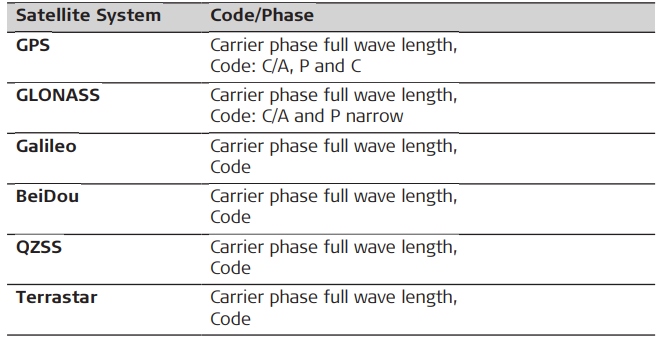

GNSS measurements: GNSS measurements are fully independent code and phase measurements on all frequencies. Carrier phase and code measurements on L1, L2 and L5 (GPS) are fully independent with AS on or off.
