Description: The Leica iCON gps 120 instrument together with dedicated accessories
like the AC02 mounting bracket with magnets or double-sided tape, and a machine computer offer you highest productivity and flexibility. For example, besides a Dual GNSS configuration the system can also be complemented with a communication unit (CR50) for more flexibility.
An example configuration is shown in the following paragraph.

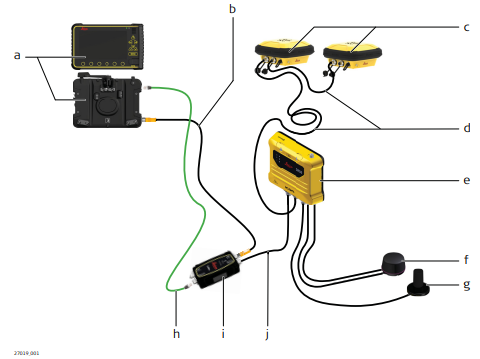

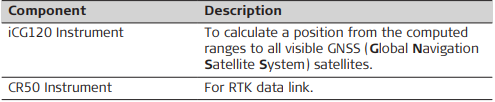

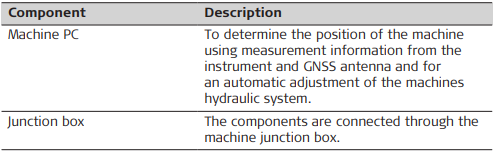

Main components, Dual GNSS configuration with RTK from CR50
Satellite channels
iCON gps 120 instruments are equipped with several special features:
• Wide supply voltage range of 9 V to 35 V
• Voltage peak protection and reverse polarity protection
• Can be mounted on a machine vertically and horizontally
• Can be used near the sea
• Different mounting options
• Protection caps on connectors
• LEDs for status information
• Versatile connectivity including Automotive Ethernet and Bluetooth
• USB host port for data transfer and firmware upgrade
• Robust, compact aluminium bottom housing
Commands for Remote Config
The iCON gps 120 instrument can be communicated:
• via the Leica Machine Control Net Protocol on the Automotive Ethernet ports.
Documentation for the communication protocol is available on request from the Leica Geosystems representative.
