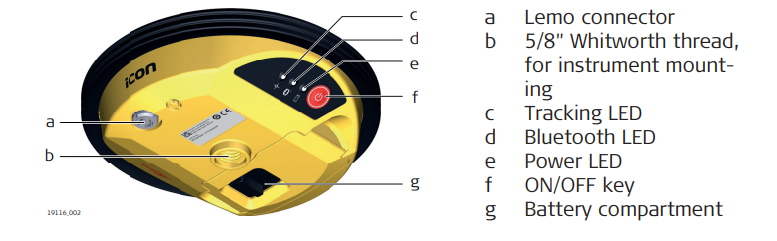

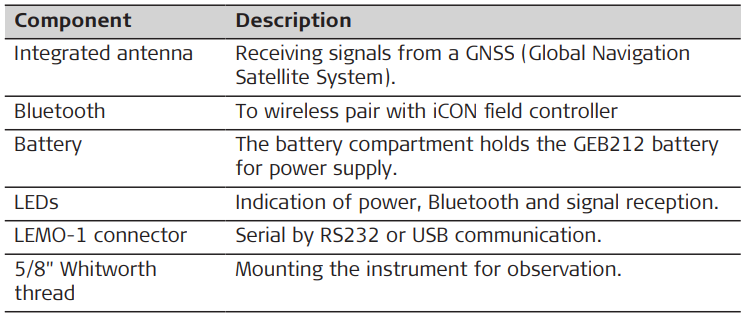

Main components: The iCON gps 30 represents the so called instrument.
Interface
Do not open the instrument or remove any connector as this action impairs the protection against water, dust and sand. Open the instrument for battery handling without exception in dry and clean conditions only.

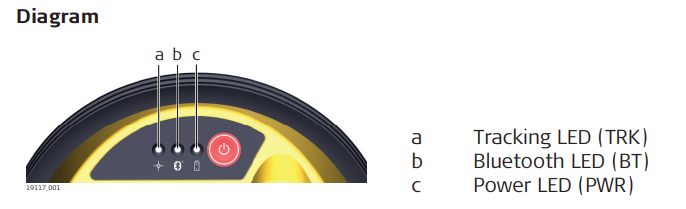

LED indicators

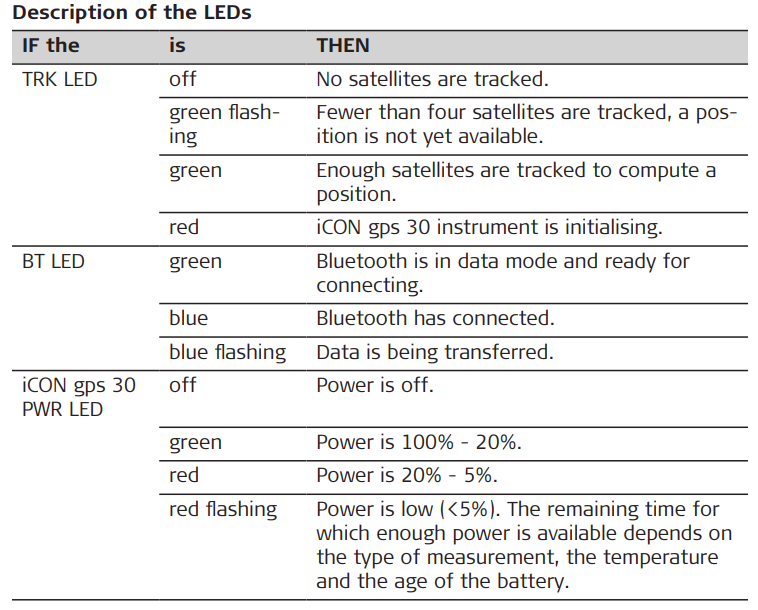

Description: The iCON gps 30 instrument has Light Emitting Diode indicators. They indicate
the basic instrument status.
