Description:
NMEA messages consist of various fields. The fields are:
• Header
• Special format fields
• Numeric value fields
• Information fields
• Null fields
Certain symbols are used as identifier for the field types.
These symbols are described in this section.

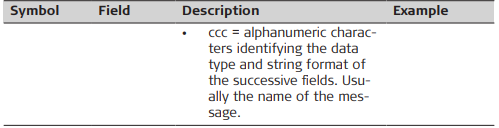

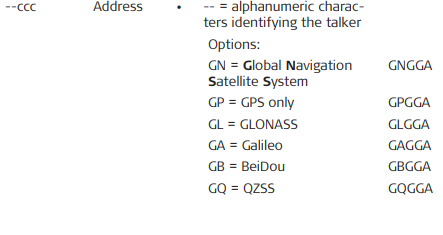

Header

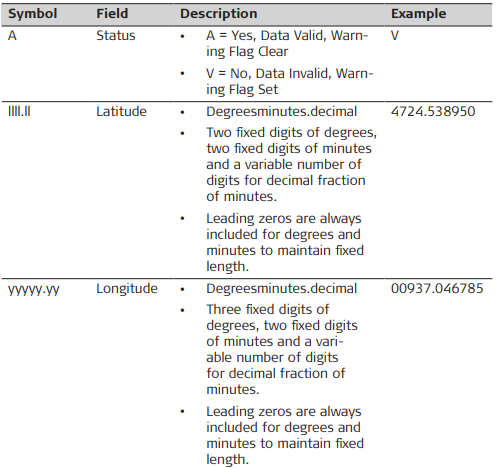

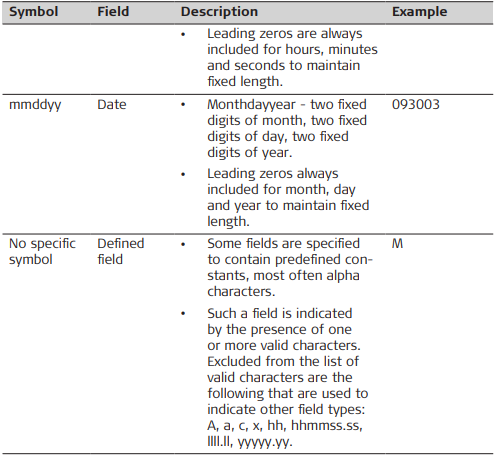

Special format fields

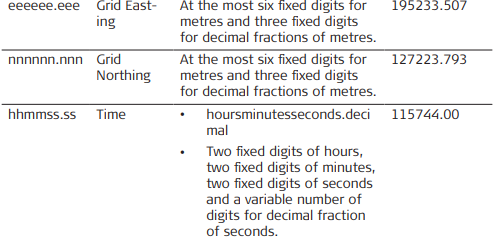

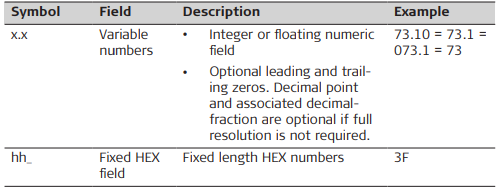

Numeric value fields

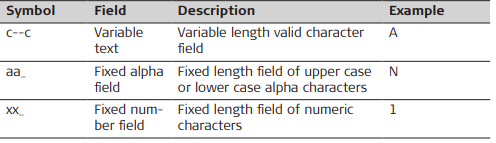

Information fields

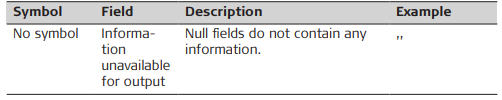

Null fields
➜ Fields are always separated by a comma. Before the Checksum field there is never a comma.
➜ When information for a field is not available, the position in the data string is empty.
