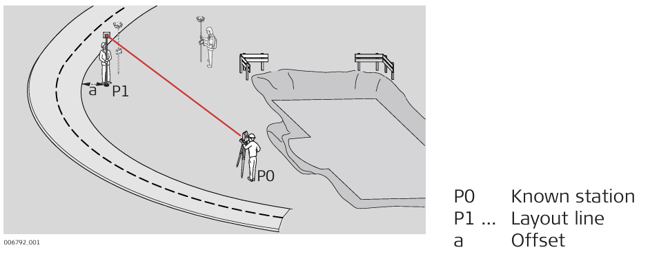

General description: The Roading application is used to place marks in the field along pre
determined road lines or cross-sections. These predetermined road lines are the lines to be staked.
The road lines to be staked can be uploaded as a file to a project. Refer to Importing data to the project step-by-step for more information.
This chapter explains how to stake out road lines using GNSS and Total Station.
Given:
• Instrument is connected and set up with known station and height.
• Road model active within the current job. Refer to Importing data to the project step-by-step.
Stake out road lines
- Open the Roading app.
- Select the road line to stake and press Start.

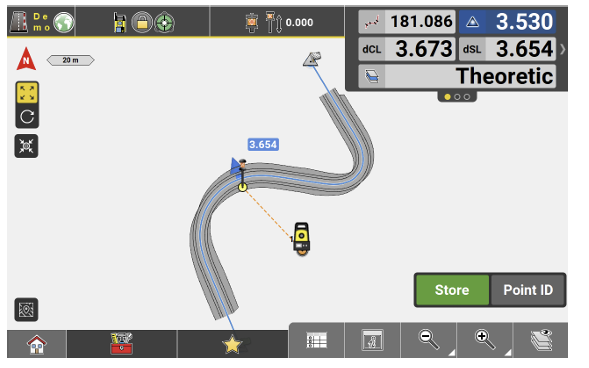

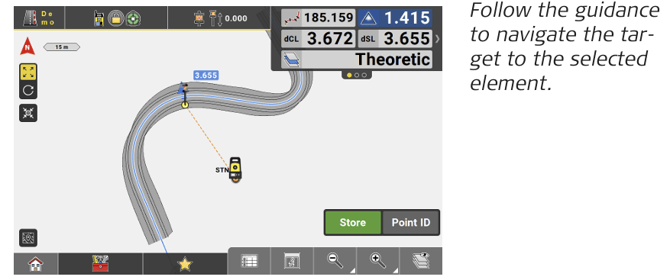

- Follow the guidance to navigate the target to the road line.
- Tap Store and mark the staked position (in the field).
➜ This process can be repeated along the same line. To stake another line, tap the preferred line, and continue the process.
➜ In order to get the height into tolerance, optionally switch to the cross-section view for support. See also: Stake out Road Lines using Cross Section view
Stake out Road Lines using Cross Section view
- Open the Roading app.

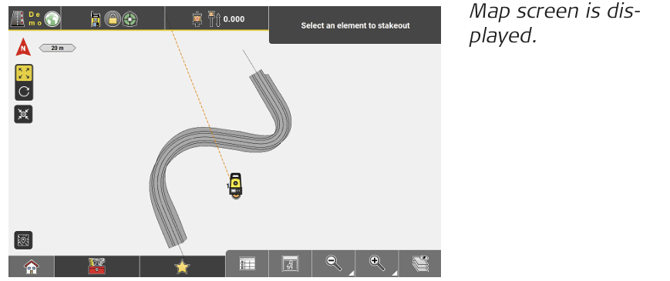

Map screen is displayed. - Select a road line to stake and press Start.
-
- From the Map Handler select View

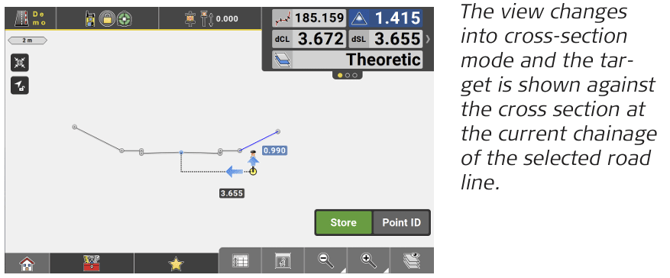

> Cross Section.

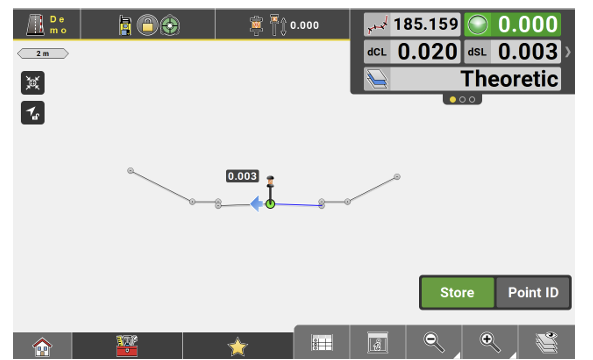

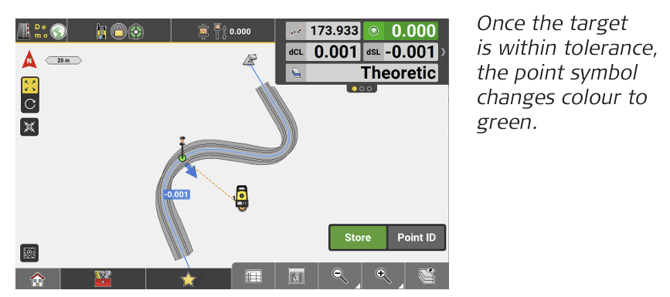

- Once the target is within tolerance, tap Store and mark the staked position in the field.
➜ To fix the heading in the cross-section view, tap
➜ To return to the regular Map view, deselect Cross Section from the Map Handler.
➜ On how to stake out cross slopes refer to: Stake out cross slopes using Cross Section view
Stake out Offsets
- To offset a road line select Offset Element from the Toolbox.

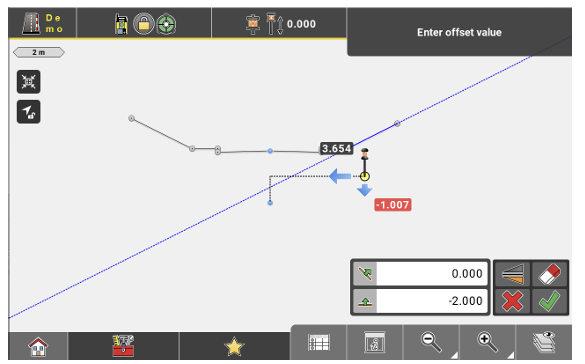

- Select the road line required for offset and enter a horizontal and/or vertical offset value. Use Flip
to switch the offset value from positive to negative.
- Tap
to accept and continue with staking out the offset element.
