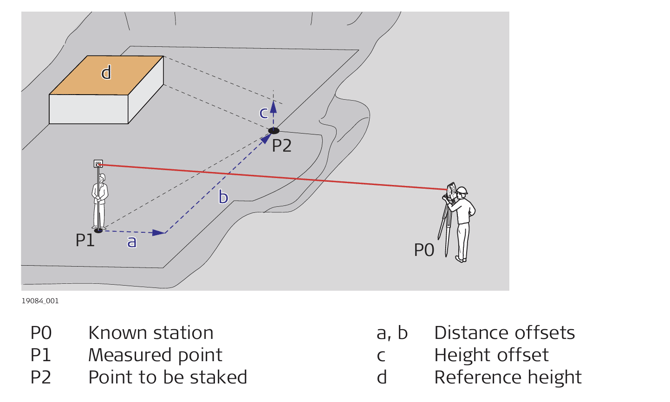

General description
Given:
• Instrument is connected and set up with known station and height.
• Data is active within the current job. Refer to Importing data to the project step-by-step.
Stake out points with reference to a height step-by-step
- Open the Stakeout app.

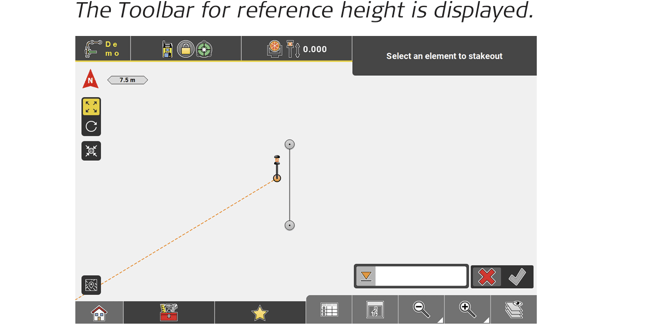

- Select Reference Height from the Toolbox.
- Define the reference height by one of the following options:
• Select a point with the desired height and tap
to accept. A virtual, flat reference surface is created at the height of the selected reference point.

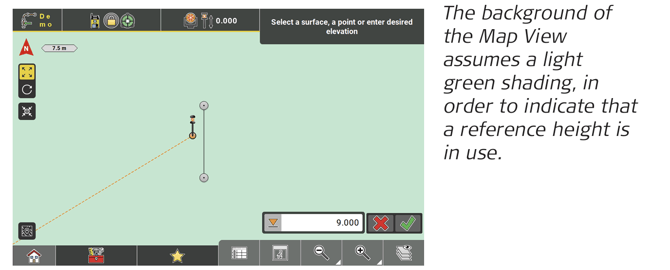

• Directly enter a reference height
in the Toolbar and tap
to accept. A virtual, flat reference surface is created at the given reference height.

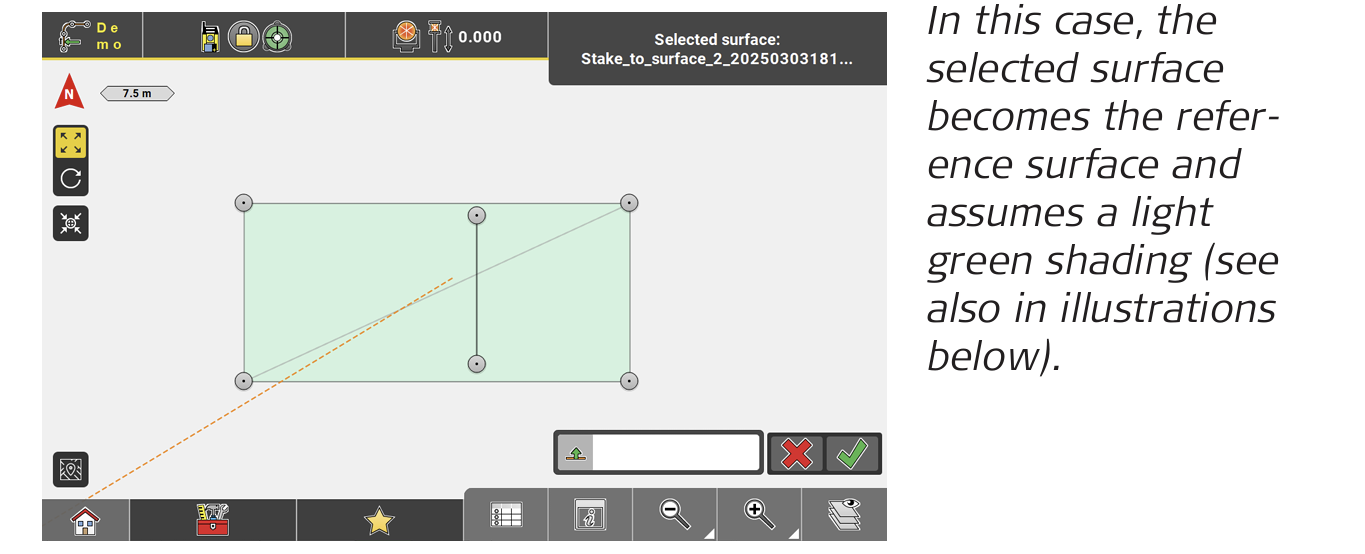

• Select an existing surface and tap
to accept. If necessary, an offset
to the surface can be defined in the Toolbar.

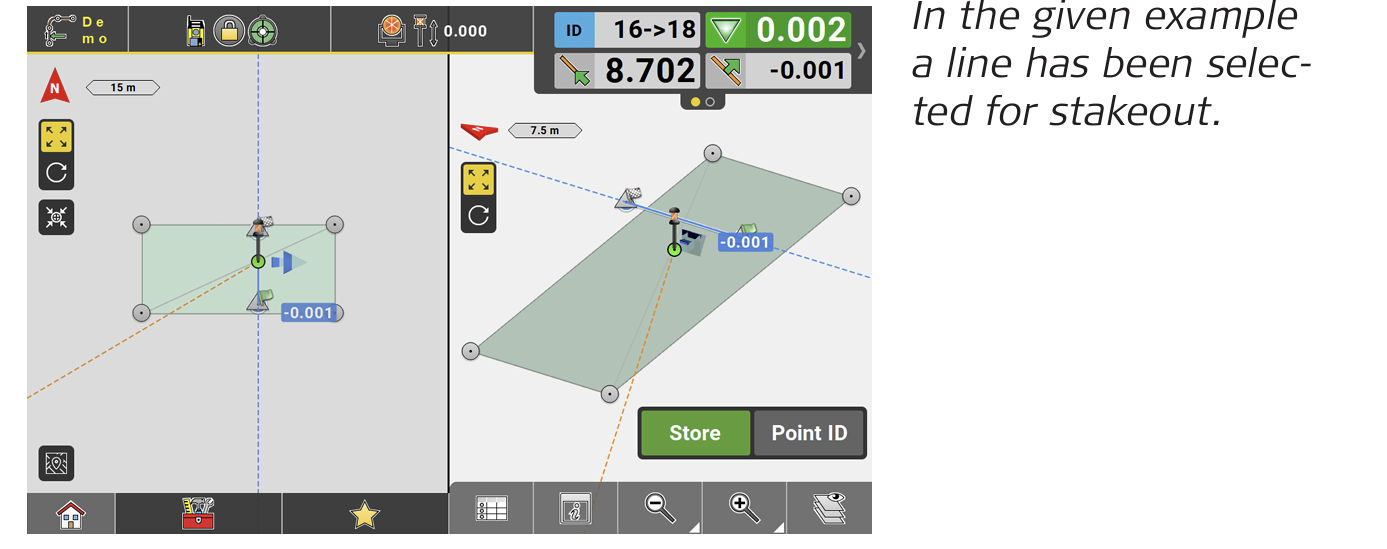

- Select a point, line or arc to be staked. Press Measure. The cut/fill value indicated in the information bar is calculated with respect to the projection of the selected element to the reference surface (not with respect to the selected element itself).
- To store the point, tap Store.
➜ Once the location is marked (in the field) and the point is stored, the next element can then be selected, and the storing process can repeat.
