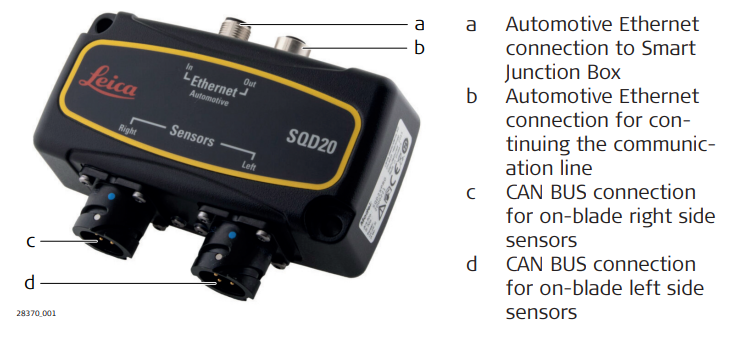

SQD20 components
Power option:
The SQD20 is powered over the Automotive Ethernet connection from the SJB5x Smart Junction Box.
See Wiring Diagram for options.
SQD20 Smart Quick Disconnect
• The SQD20 gets power from the SJB5x over the Automotive Ethernet cable.
• This device provides CAN BUS connections to the SJB5x dedicated for "left" and for "right".
• Requires Automotive Ethernet connectors on the Smart Junction Box.
• It is recommended to install the SQD20 inside the machine close to the Smart Junction Box. Install the Quick Disconnect hardware on the front of the machine and route the cable through the machine
• The SQD20 shares the same hole pattern as MSS401 sensors for bracket option.
