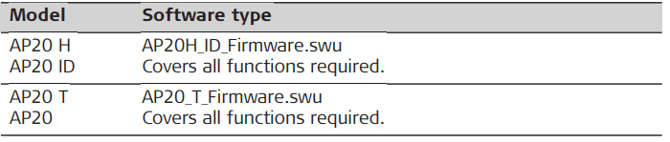

Software upload: In case a software upload for AP20 is indicated, the correct firmware file has to be selected. The firmware file depends on the AP20 model.
➜ Uploading software can take some time. Ensure that the battery is at least 20% full before you start the upload. Do not remove the battery during the upload process.
Software update instructions for all AP20 models:
- Download the most recent firmware file from
https://myworld.leica-geosystems.com to your local PC. - Connect AP20 to PC using GEV284 cable.
- Copy the firmware file onto the AP20 memory device.
- Disconnect GEV284 cable.
- Switch AP20 off.
- Switch AP20 on.
- The upload starts automatically. During the upload, all three LEDs are flashing consecutively.
- The update is complete when the Power LED on AP20 is constantly lit.
