Smart Coding

↪  Only available on field controller (7" and 10" display).

↪  Smart Coding licence needed. Smart Coding is available in the following applications:

- Measure iCON site

- As-Built iCON build

 See also: Optional licences

 Defining Smart Code Sets

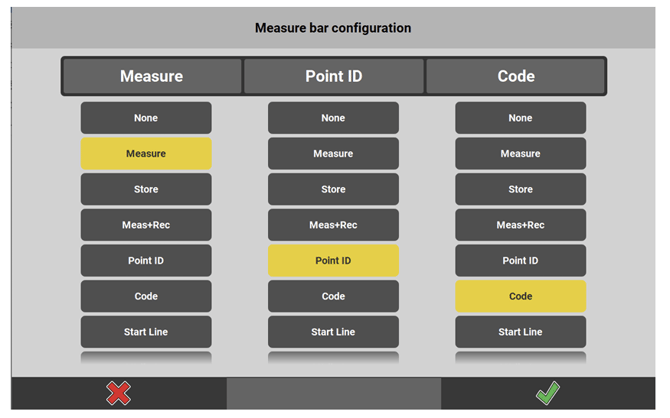

1. To define smart code sets, configure the Measure bar to display Code. Tap and hold the Measure bar. Select Code from the Measure bar configuration screen, and tap to accept.
2.  Back in the Map View tap Code in the Measure bar.

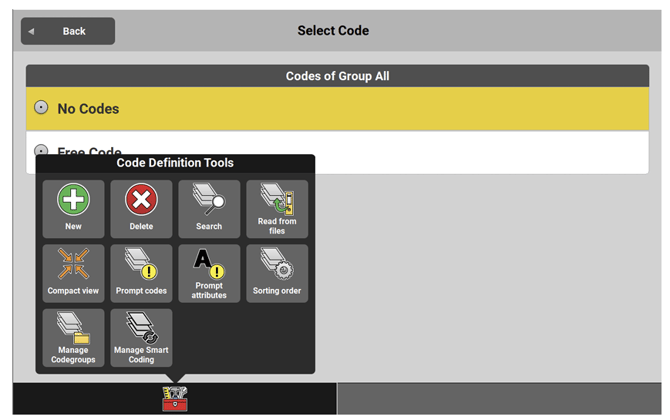

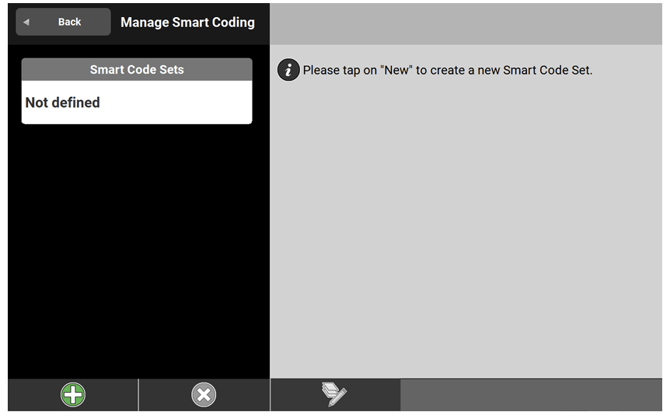

3.  In the Select Code page open the Toolbox and tap Manage Smart Coding. The Manage Smart Coding page opens.

4. Tap to define a new smart code set.
5.  On the left tap All and select codes that shall be added to the set. • To remove codes from the set tap .
   • To sort codes differently in the set, select a code and tap the arrows  or   to move the code further up or further down.
   •  To search for a code tap . You can wildcard searching and you can search for the name or the description of a code.
6.  Enter a name for the smart code set to be defined.

7. Tap . • To edit a selected smart code set, tap .
   • To delete a smart code set tap . On the right select the set to be deleted and tap . You can also tap All and delete all sets at once.
8.  Tap Back to be returned to the Select Code page.

 How to use Smart Code Sets

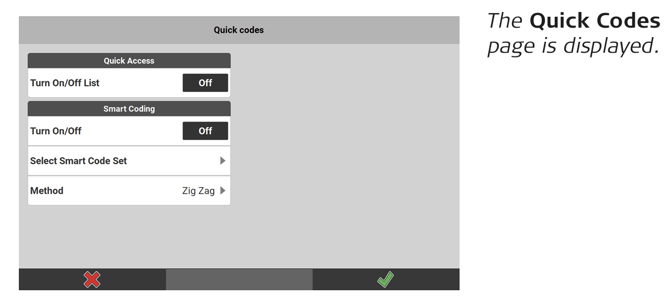

1.  To use smart code sets, turn on Quick Codes from within the Map handler > View
    panel.
2.  Turn Smart Coding 'On'.
3. Tap on Select Smart Code Set and select a set from the list that is displayed on the right.

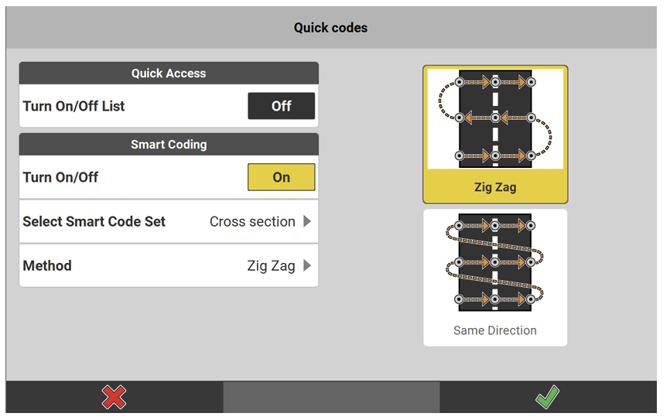

4.  Tap on Method and select either 'Zig Zag' or 'Same Direction'. • Zig Zag: Applies the codes from the list from top to bottom and then backwards from bottom to top while measuring points.
   • Same Direction: Applies the codes in a top-to-bottom loop.
5. Tap  to confirm your settings.

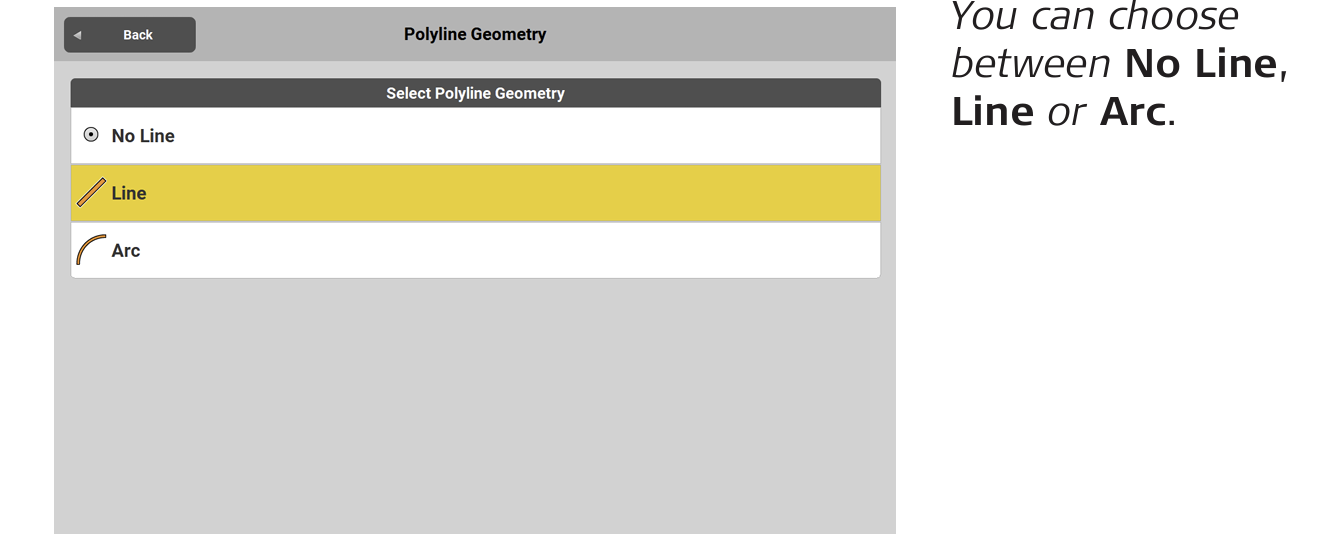

6. Tap on the point symbol  on the right of each code in the Smart  Code list, in order to select a Polyline Geometry.

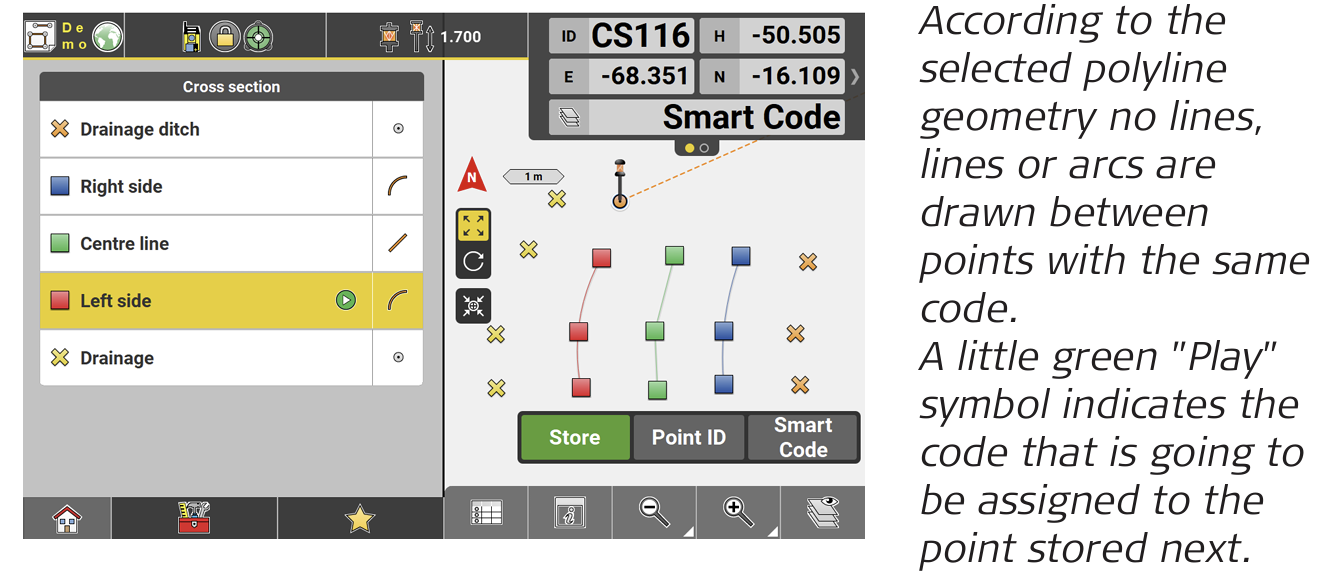

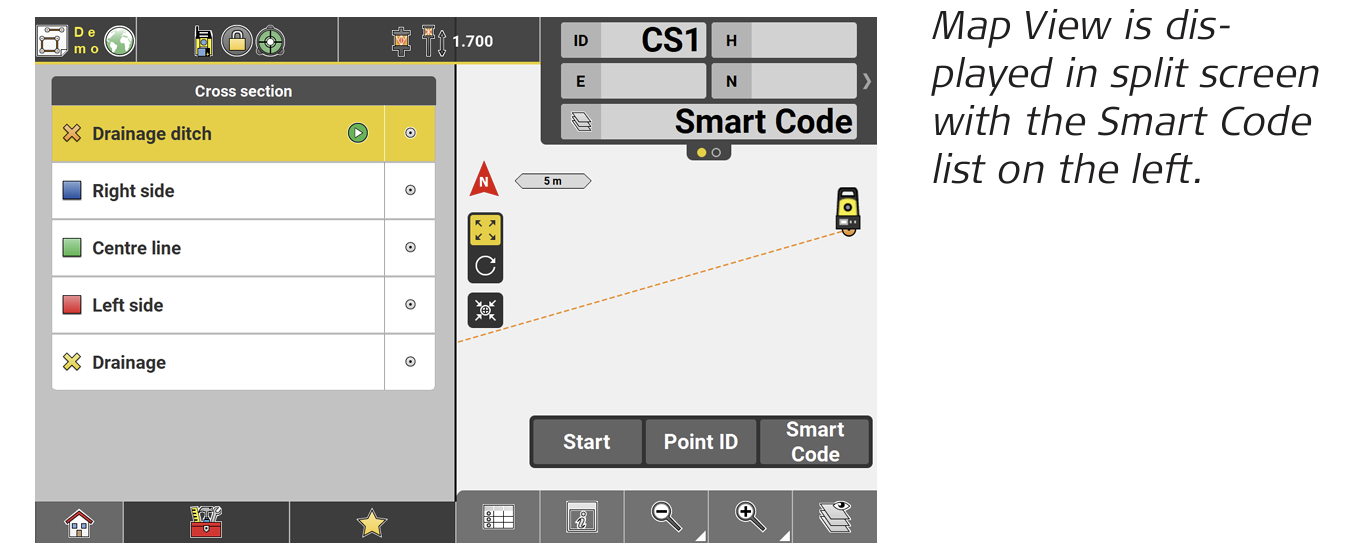

7.  Back in the Map View start measuring points. ↪  The polyline geometry can be changed any time for each point that shall be measured next. Tap the point/line/arc symbol and select a different geometry if desired.

   ↪ To change the smart coding method, tap Quick Codes from within the Map handler > View panel. In the Quick Codes page switch methods and tap .

 Pause Smart Coding

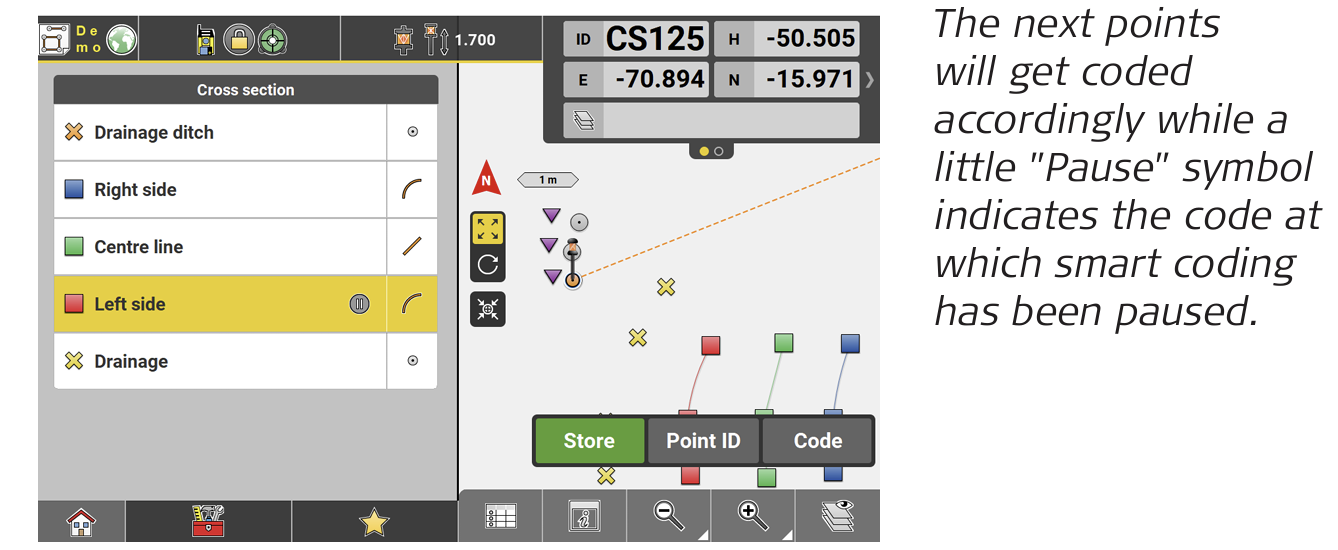

1. To pause smart coding tap the Smart Code button in the Measure bar and select any other code that is not included in the Smart Code list, or select 'No Codes' or 'Free Code' if desired.

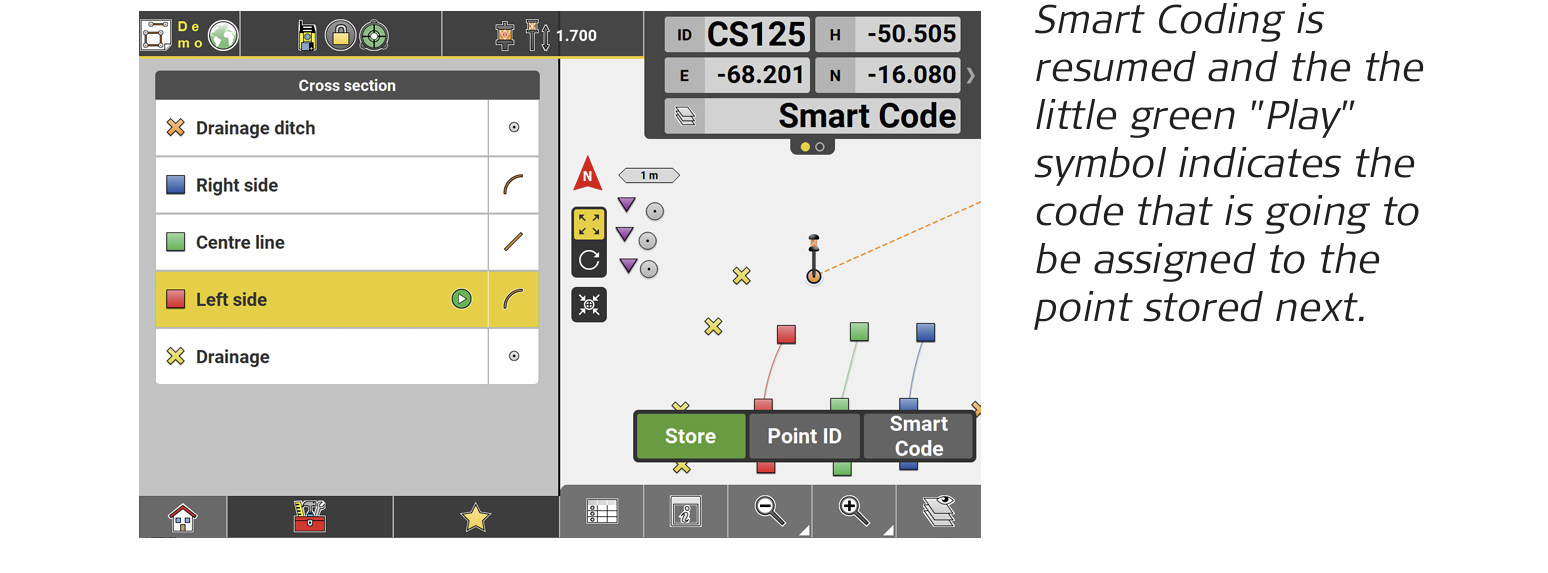

2.  To resume Smart Coding tap the code at which smart coding has been paused or tap a code coming next in the Smart Code list.

 Stop Smart Coding

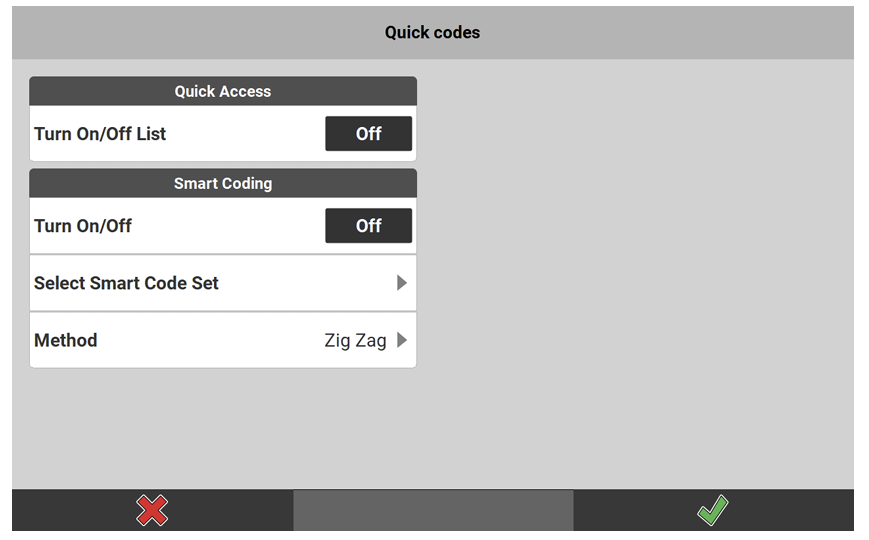

1. To stop smart coding, tap Quick Codes from within the Map handler > View panel.

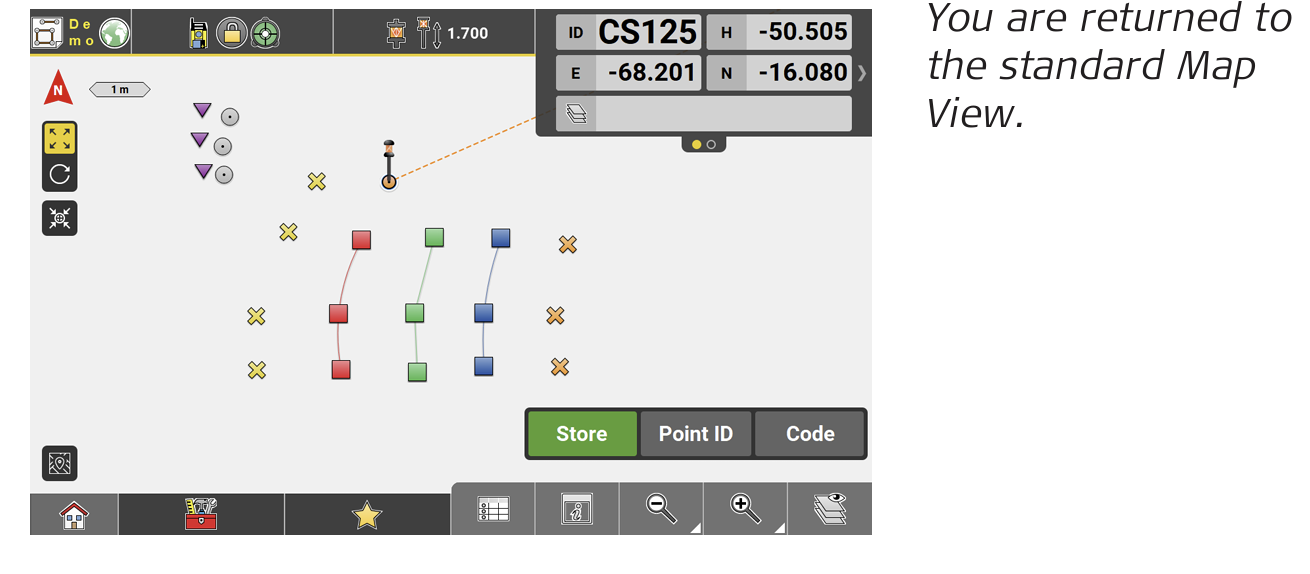

2.  In the Quick Codes page turn Smart Coding 'Off' and tap  .
