Sketching Toolbox Functions 8.5.5

Points & Lines Tool box functions

➜ Available when the Points & Lines Sketching Function is in use. See also: Sketching functions Overview

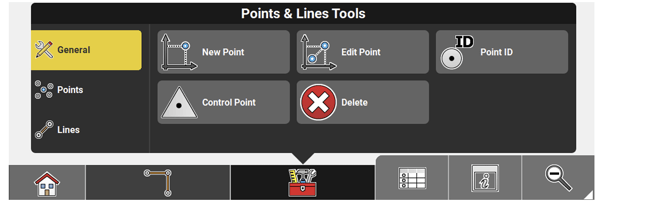

Function	Description
New Point	Insert a point into the map by entering the required coordinates or by scanning a QR code, or select a point and adapt the coordinates for the new point. The new point can also be defined as Control Point. ➜ To start the QR-code scan tap .See also: Importing data using QR Scan step-by-step
Edit Point	After selecting a point from the map, permitted values can be edited.
Point ID	Tap Point ID to edit ID for the next point.
Control Point	Tap to activate the Control Point function. When active, new points are stored as control points.
Delete	Remove points/lines/arcs.

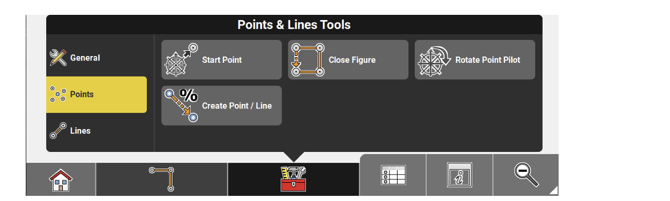

Function	Description
Start Point	Allows the selection of a point as the new start point.
Close Figure	Tap to complete the shape.
Rotate Point Pilot	iCON build + iCON site Plus Rotate the point pilot relevant to presettings, for example a reference line or a constructional drawing, to use this helpful tool in a rotated position.
Create Point / Line	Allows you to create a point or line by defining direction and slope.

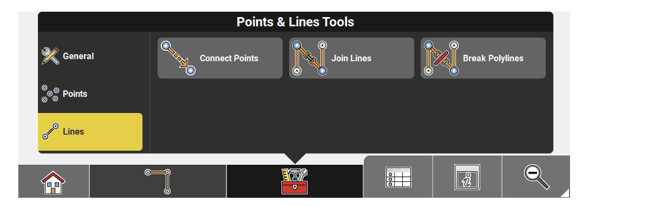

Function

Description

Connect Points

Tap points to create a line between these points.

Join Lines

iCON site + iCON build Plus

Tap and select lines/arcs to join them.

Break Polylines

iCON site + iCON build Plus

Tap and select polylines and break points.

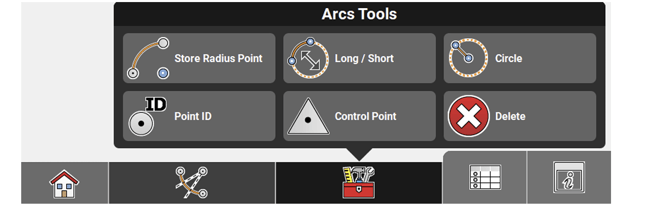

Arcs Toolbox functions

➜ Available when the Arcs Sketching Function is in use. See also: Sketching functions Overview

Function	Description
Store Radius Point	Allows you to store the radius point along with the arc.
Long / Short	Allows you to toggle between the short and the long segment of a circle, when creating an arc. By default, short is selected.
Circle	iCON build + iCON site Plus Allows you to create circles.
Point ID	Tap Point ID to edit ID for the next point.
Control Point	Tap to activate the Control Point function. When active, new points are stored as control points.
Delete	Remove points/lines/arcs.

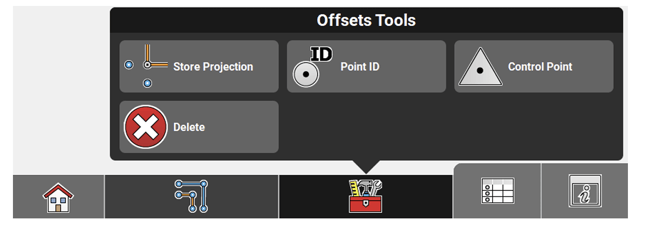

Offset Toolbox functions

➜ Available when the Offsets Sketching Function is in use. See also: Sketching functions Overview

Function	Description
Store Projection	Allows you to store projection points at perpendicular offsets in corners.
Point ID	Tap Point ID to edit ID for the next point.
Control Point	Tap to activate the Control Point function. When active, new points are stored as control points.
Delete	Remove points/lines/arcs.

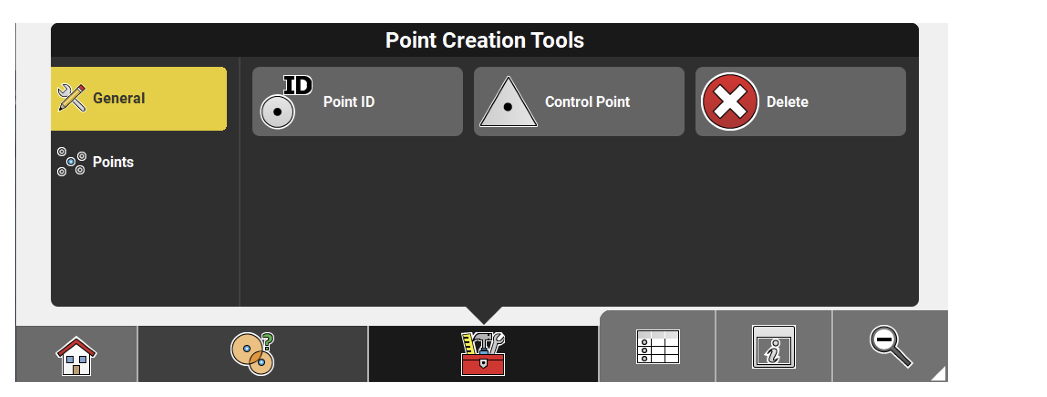

Point Creation Tool box functions

➜ Available when the Point Creation Sketching Function is in use. See also: Sketching functions Overview

Function	Description
Point ID	Tap Point ID to edit ID for the next point.
Control Point	Tap to activate the Control Point function. When active, new points are stored as control points.
Delete	Remove points/lines/arcs.

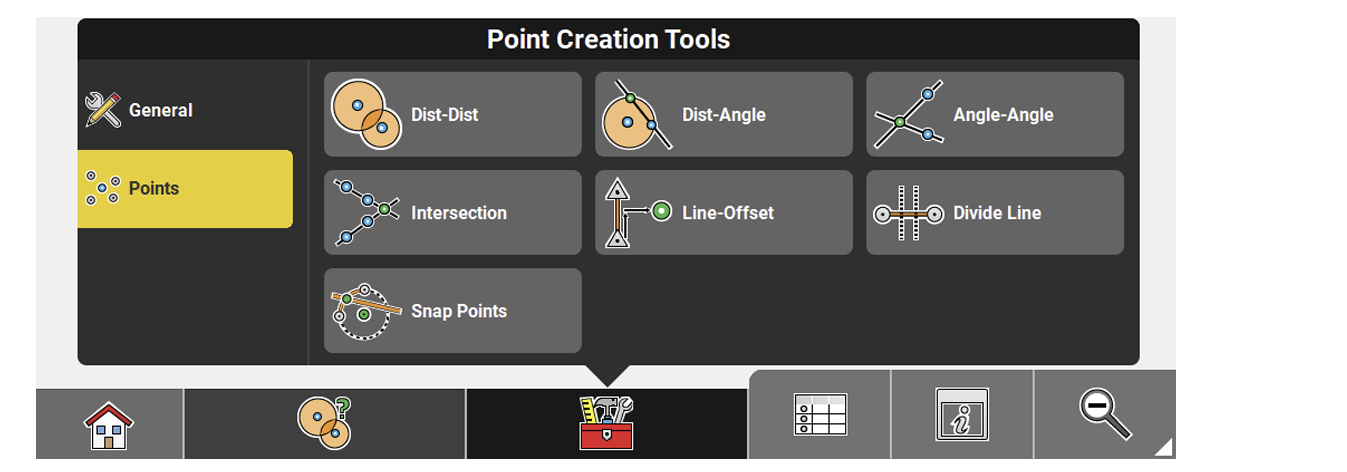

Function	Description
Dist-Dist	Select two points and the required distances for intersection. When the theoretical circles intersect select the intersection point to store.
Dist-Angle	Select a point and the required distance. Then select a second point and the angle for theoretical line through that point. When the theoretical circle intersects the line select the intersection point to store.
Angle-Angle	Select two points and the angles for the the oretical lines through these points. When the theoretical lines intersect, select the intersection point to store.
Intersection	Select a first line or two points for it. Select a second line or two points for it. When the theoretical lines intersect store the intersection point.
Line-Offset	Select a line to offset or two points for it. Then enter the line and offset information and store the new point.
Divide Line	Select a line, or two points for it, or an arc, to divide into segments.
Snap Points	iCON build + iCON site Plus Select lines, arcs or circles and create their mid points, intersection points or centre points.
