Setup over One Known Point with Second Known Point

 General description

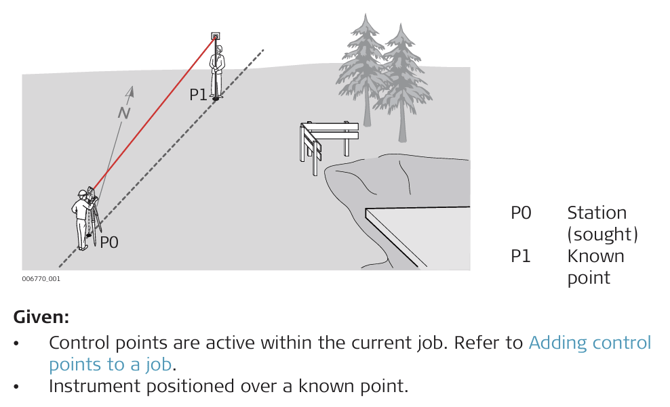

 Setup over one known point with second known point step-by-step

  1. Open the Setup app.
    iCON site: Optionally, select Setup from the Favourites key.

  2.  Select Over known point.  For an overview of available setup methods refer to:
     General Description.

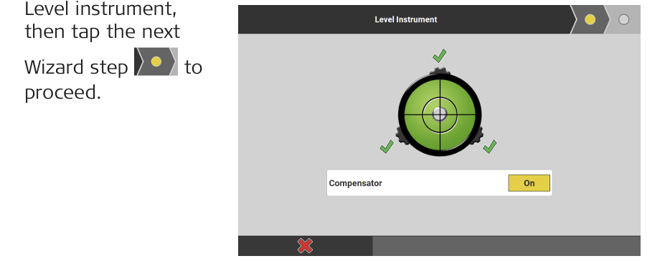

  3.
  4.

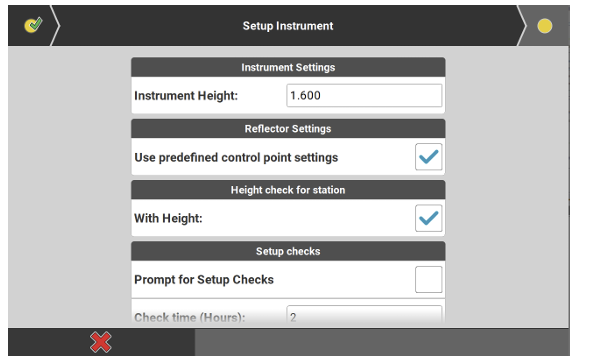

  •  Enter the Instrument Height, if needed.
  • Choose the Reflector Settings. By default, Use predefined control point settings is enabled and the prism settings used for the setup measurements and calculation will be as defined under Prism parameters for Setup. See also: Display point information To use the prism settings as defined in the Status bar, deativate the tick box.

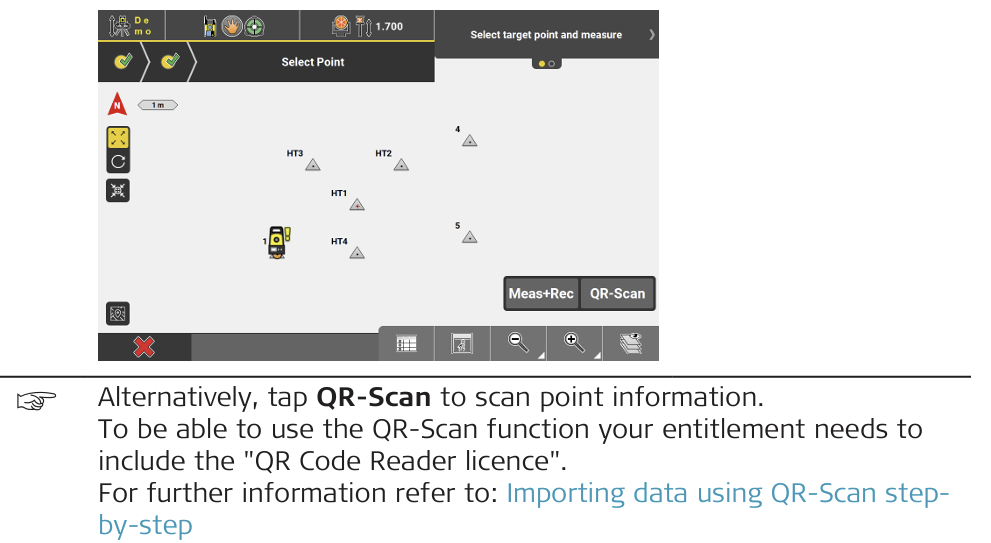

  1.  Select the Station Point, and select a Target Point. Aim telescope to target point, then press Measure, then Store, or press Meas+Rec, if configured.

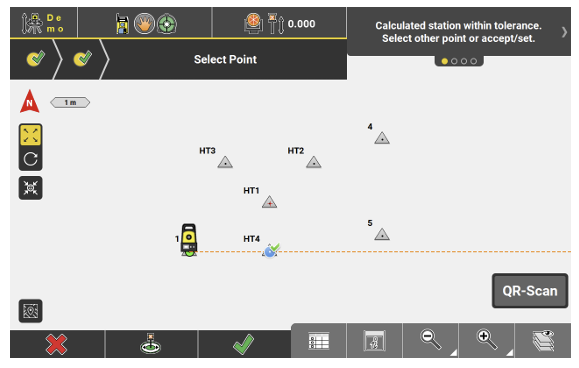

  2. If the station is within tolerance, tap  to accept. If out of tolerance, remeasure to the tar
    get point, or to a new target point.

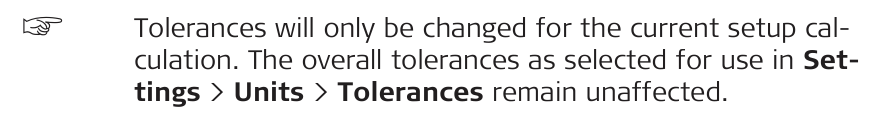

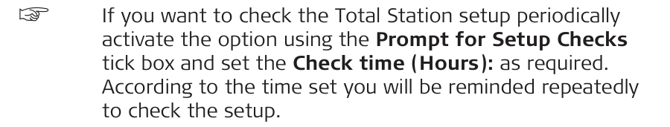

  3.  In order to change the tolerances used for the setup calculation,  tap and select any pre-defined or any existing user-defined tolerances to be used. Then tap Back to return to the Residuals screen.
