Setup Anywhere with Given Coordinates

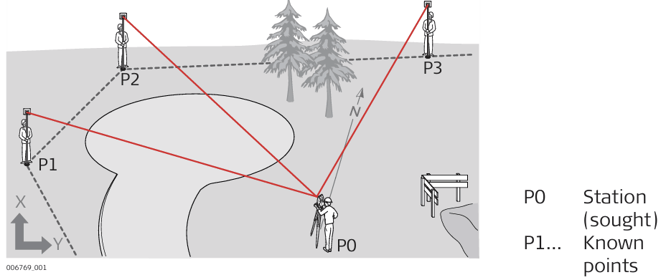

 General description

 Given:

• Control points are active within the current job. Refer to Adding control  points to a job.


• Instrument positioned anywhere on site.

 Setup anywhere with given coordinates step-by-step

1.  Open the Setup app.
   iCON site: Optionally, select Setup from the Favourites key.
2. Select Anywhere. For an overview of available setup methods refer to: General Description.

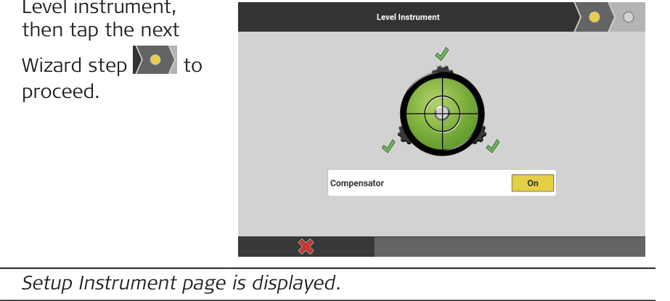

3.
4.  iCON site + iCON build Plus

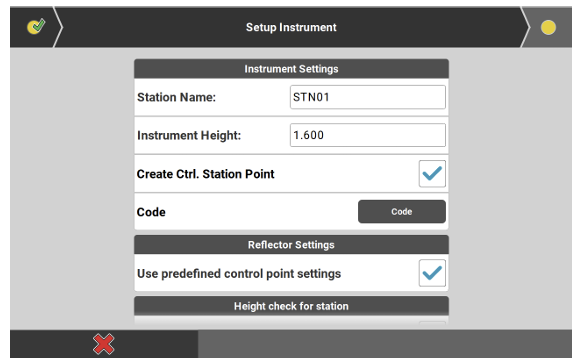

    Enter a Station Name

Independent of iCON site or iCON build licence:

•  Enter the Instrument Height, if needed.
• Activate the Create Ctrl. Station Point tick box, in order to define the station point as a control point. In this case it is possible to assign a code to the station point. Tap the Code button and select a code. Activate the Create Ctrl. Station Point tick box, in order to
   define the station point as a control point. In this case it is possible to assign a code to the station point. Tap the Code button and select a code.
• Choose the Reflector Settings. By default, Use predefined control point settings is enabled and the prism settings used for the setup measurements and calculation will be as defined under Prism parameters for Setup. See also: Display point information
   To use the prism settings as defined in the Status bar, deativate the tick box.

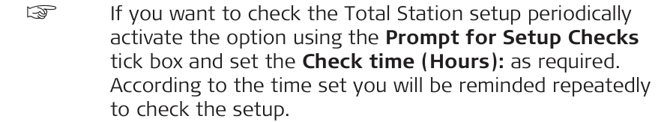

• Select Height check for station > With Height: if you want to save the station with the height value entered as instrument height (see above).

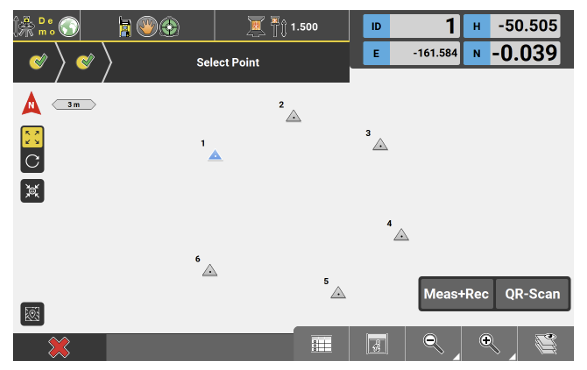

1.  Proceed to the next step. (Map screen is displayed.)

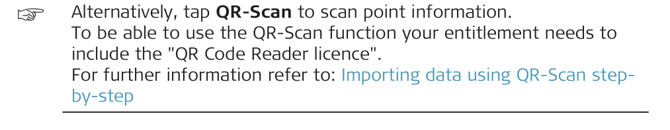

2. Tap a point to select it as the first point to measure. Aim telescope at target point, then press Measure, then Store, or press Meas+Rec, if configured.

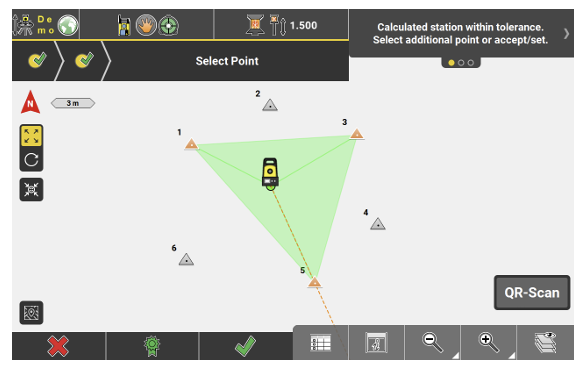

3.  Repeat for further points. Tap the point(s), then Measure and Store.

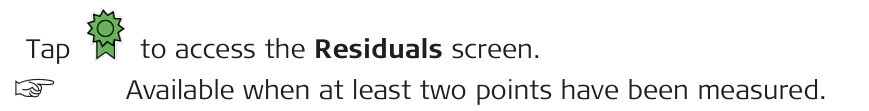

4.

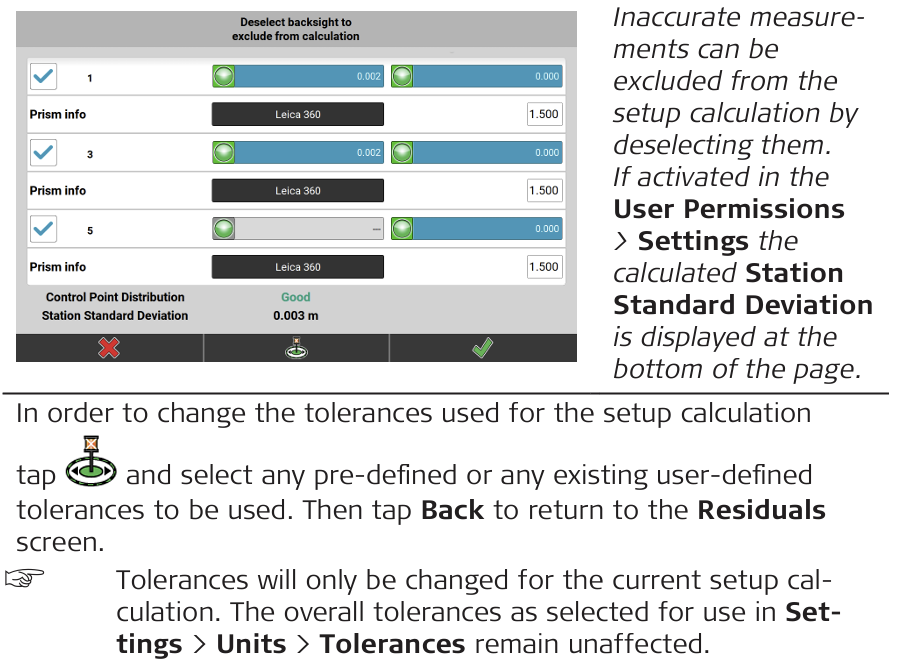

5. When all measurements to be used for the setup calculation are within tolerance, tap  to accept.
