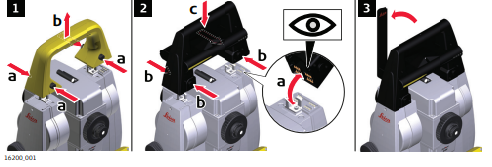

Attaching the Communication Handle step-by-step
➜ Refer to 4.1 Instrument Setup for the initial instrument setup onto a tripod.
- To remove the instrument carry handle: Press and hold the four unlock push buttons and lift off the handle.
- To install the CommunicationHandle, first make sure that the interface connection on the lower part of the handle is on the same side as the Communication side cover. Then press and hold the four unlock push buttons and attach the handle.
➜ Ensure that there is a tight fit with the instrument after releasing the push buttons. If no connection can be found, re-check that handle is seated firmly. - Swing the antenna of the CommunicationHandle into an upright position.
➜ Refer to field software manual for additional information.

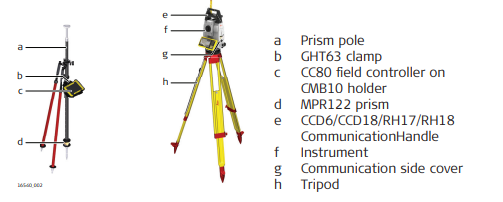

Setup for Remote Control with CommunicationHandle
