Setting Up AutoPole 11

AutoPole setup

Attaching AP20 onto AP Reflector Pole

 ➜ AP20 is only compatible with AP reflector poles CRP4, CRP5, GLS51 and GLS51F.

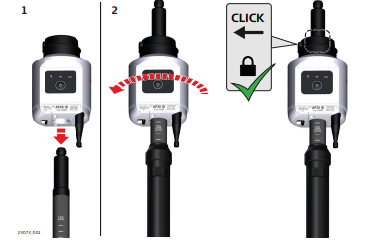

1. Place the AP20 over the top of the AP reflector pole and slide it down as far as it will go.

   ---

2. Rotate the AP20 until it snaps into one of the lock positions.

   ---

3. To remove the AP20, press in the lock button to release it, then slide it up and off the top of the AP reflector pole.

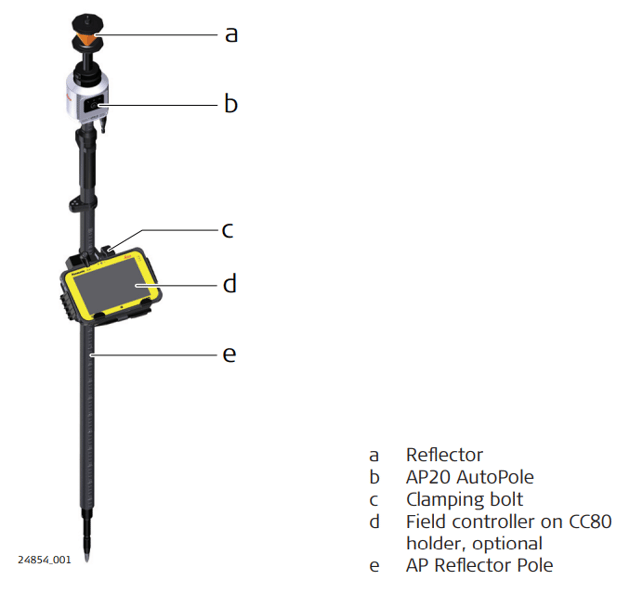

Pole handling
