Define scale options
➜ To access the scale options, tap and hold the colour scale in the result screen within the Verification app.

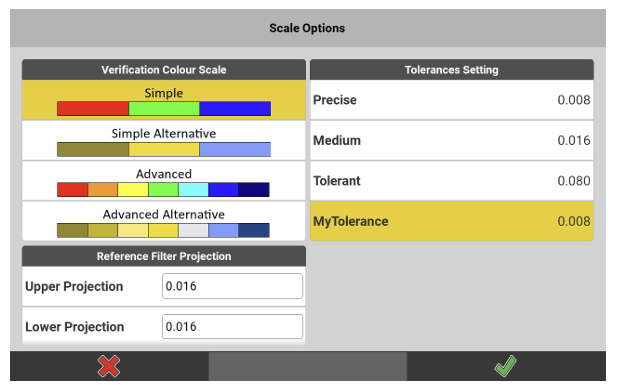

Define the scale options to be used for verification in the screen Scale Options.
Verification Colour Scale
• Simple: This scale has three colours according to three value ranges, with green representing the values within the desired tolerance range.
• Simple Alternative: Same as the simple scale, but with alternative colours for colour-blind people.
• Advanced: This scale has seven colours according to seven value ranges, with green representing the values within the desired tolerance range.
• Advanced Alternative: Same as the advanced scale, but with alternative colours for colour
blind people.
➜ The default setting for colour scale is Simple.
Tolerances Setting: Select from the four pre-defined tolerance sets: Tolerant, Medium or Precise. If available, select a user-defined tolerance set.
To change the tolerance settings, refer to Tolerance settings.
Reference Filter Projection
Define the cut-off values for the reference filter. Upper Projection defines the value above the surface of the referenced IFC object.
Lower Projection defines the value below the surface of the referenced IFC
object.
➜ By default, the cut-off values are double the selected tolerance value.
