Scale Drawing

Scale the whole 2D or 3D drawing using reference length.

• Measure or enter the real length of reference line from the drawing.
• Follow the steps indicated in the software.

Example:

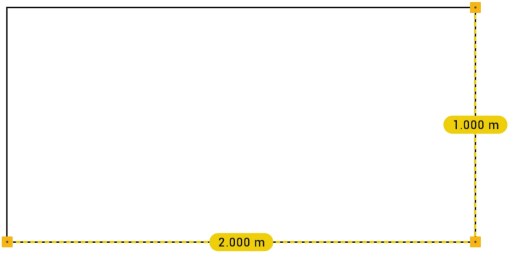

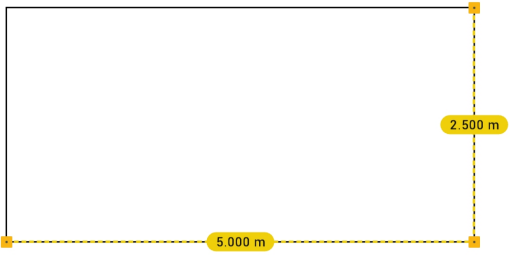

Before	After

☞ It is required to scale an imported PDF drawing.
