Description

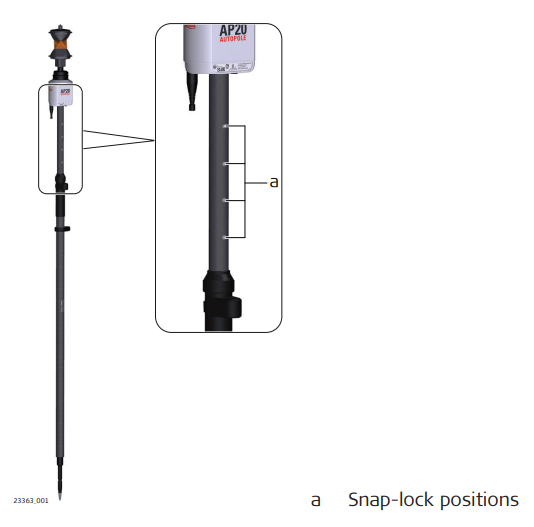

The AP Reflector Pole can be extended to any of the given snap-lock positions
in order to overcome obstacles.
As soon as a snap-lock position is reached, the attached AP20 receives the detected height from the AP Reflector Pole and transmits it to the field software of the connected total station or field controller.
The transmitted height corresponds to the current length between prism centre and pole tip, which is equivalent to the printed scale on the pole and the height input field within the field software.
➜ Valid height detection is limited to the snap-lock positions. Intermediate positions are indicated as invalid. Enter the height manually.
➜ Optional pole extensions are not taken into account.
Diagram

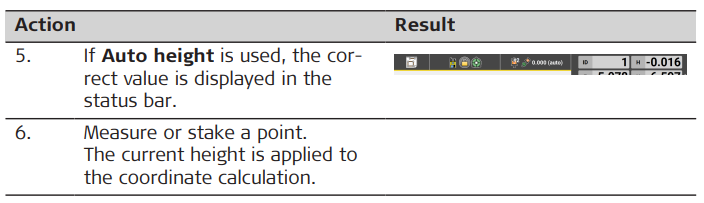

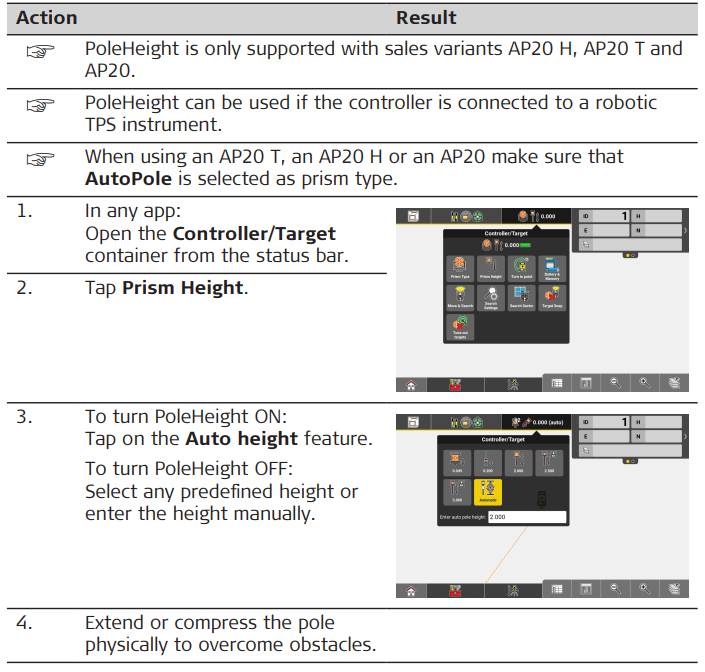

PoleHeight step-bystep
