Measuring the antenna height - tripod setup

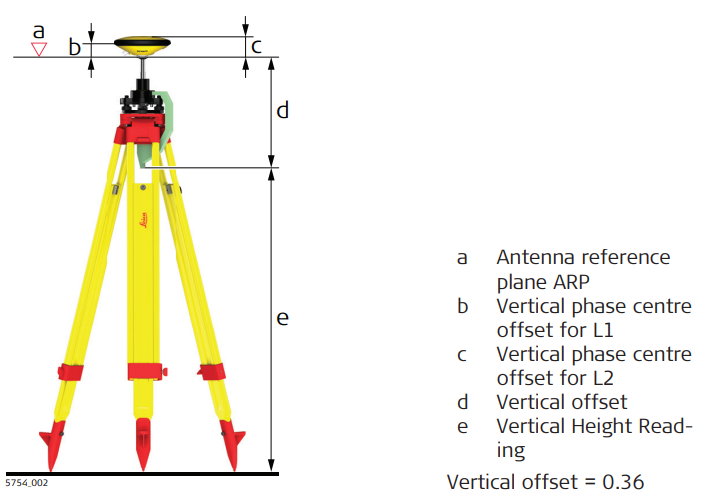

Determining the antenna height with the height hook step-by-step

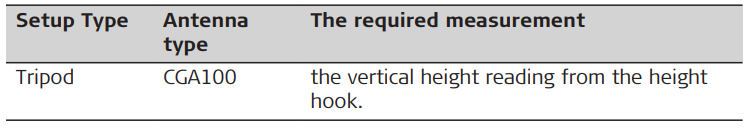

1. The vertical height reading = vertical height reading from the height hook. • The vertical height reading is the height difference between the ground mark and the bottom end of the height hook.
• The vertical offset of 0.36m is automatically stored in the antenna setup record for a tripod setup and will automatically be taken into account. It does not need to be entered.
