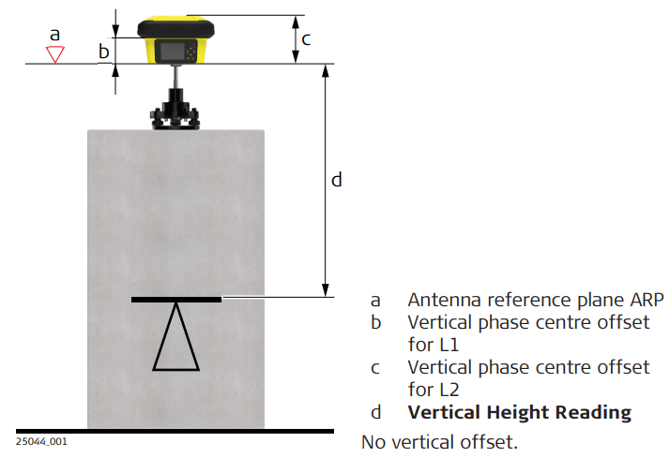

Measuring the antenna height - pillar setup
Determining the antenna height with the GRT246 carrier step-by-step
- Measure a height from the pillar benchmark to a surface on the carrier.

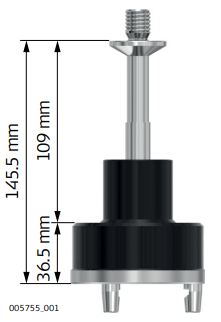

- Use the appropriate measurement from the diagram above. Determine the height difference between the measured surface on the carrier and where the ARP of the antenna sits on the carrier.
- The vertical height reading = adding the values in step 1. and step 2.
