Measuring the Antenna Height for a Pillar Setup 3.10.3

Measuring the antenna height - pillar setup

Determining the antenna height with the GRT146 carrier step-by-step

  1. Measure a height from the pillar benchmark to a surface on the carrier.

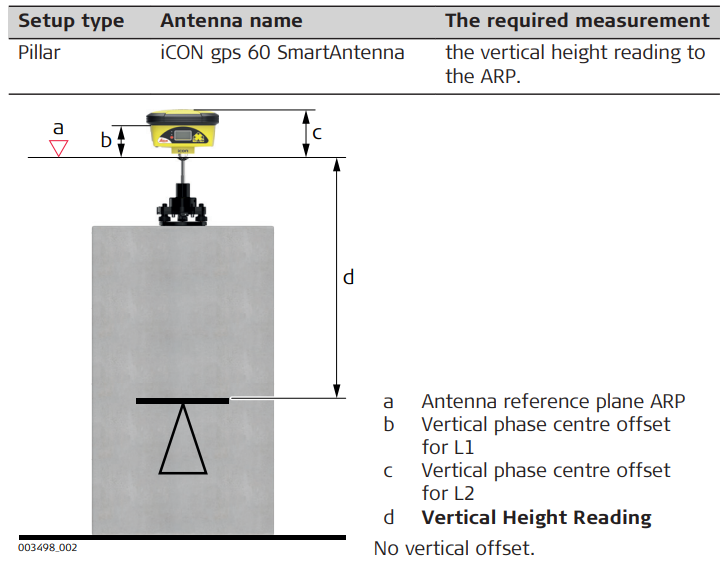

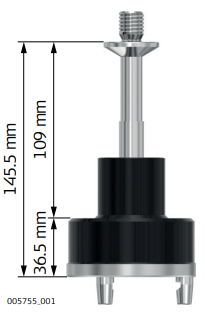

  2.  Use the appropriate measurement from the diagram above. Determine the height difference between the measured surface on the carrier and where the ARP of the antenna sits on the carrier.
  3. The vertical height reading = adding the values in step 1. and step 2.

Measuring the antenna height - pillar setup

Determining the antenna height with the GRT146 carrier step-by-step

  1. Measure a height from the pillar benchmark to a surface on the carrier.

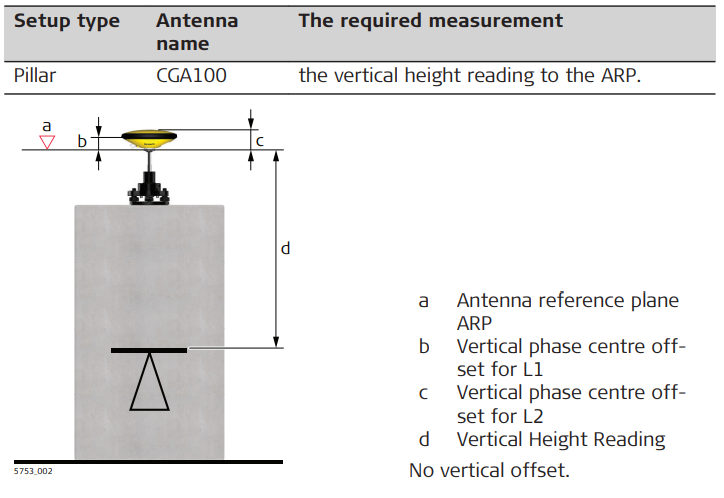

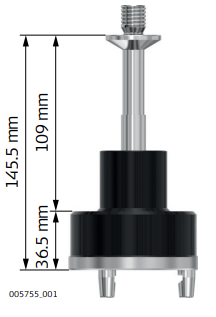

  2.  Use the appropriate measurement from the diagram above. Determine the height difference between the measured surface on the carrier and where the ARP of the antenna sits on the carrier.
  3. The vertical height reading = adding the values in step 1. and step 2.
