Measure Toolbox Functions

Toolbox functions

Function	Description

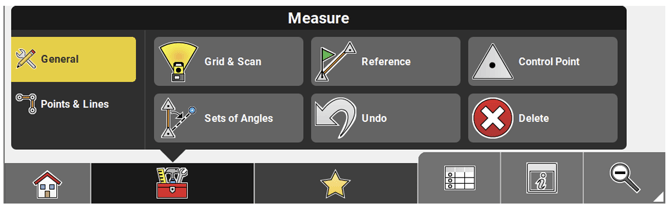

Grid & Scan	TPS only: Tap to choose a method for creating point clouds by scanning. ↪ Scan and Adv. Surfaces licence needed.
Reference	Tap to measure elements with reference to a line.
Control Point	Tap to store measured points as Control Points.
Sets of Angles	Tap to measure Sets of Angles. ↪ 2-Face & Set licence needed.
Undo	Tap to undo previous action.
Delete	Tap to remove measured points/lines/arcs.

Function	Description

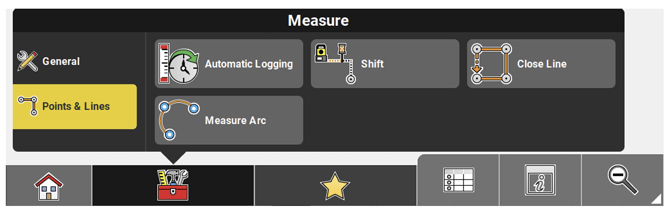

Automatic Logging	Tap to set Autologging to On/Off. Select the Logging Mode from 3D Distance,Distance and/or Height, Time, or Time over a point and define the Interval. Store on demand allows you to record measurements anywhere in between, if enabled. ↪ Automatic Logging and Shift (see below) cannot be used in parallel. Automatic Logging gets automatically switched off when Shift is selected.
Shift	Tap to shift the position of a measured point. A shift can be applied in all three dimensions. You can choose to apply a shift to only the next point or to a series of points. When an offset is applied, the Offset indicator is displayed in the top left corner of the map view. The indicator disappears when all possible offset values are set to zero. You can tap the Offset indicator to quickly access the toolbar. See also: How to shift measured points ↪ Shift and Automatic Logging (see above) cannot be used in parallel. Shift gets automatically cancelled when Automatic Logging is selected.
Close Line	Tap to close the line that you are currently measuring. See also: How to measure and record points, lines and curves ↪ Only active when measuring lines.
Create Arc	Tap to create arcs from three measured points. See also: How to measure and record points, lines and curves
