Main Menu 5.2

Description: The Main Menu is the first screen displayed when the instrument is switched
on.

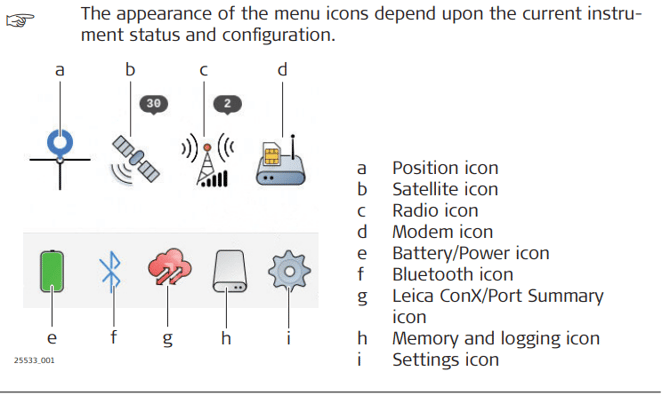

Main menu content: The Main Menu features a matrix set of menu icons.

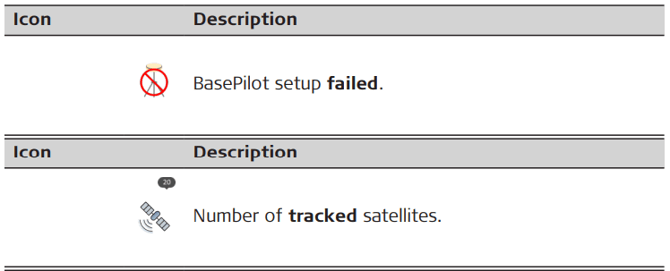

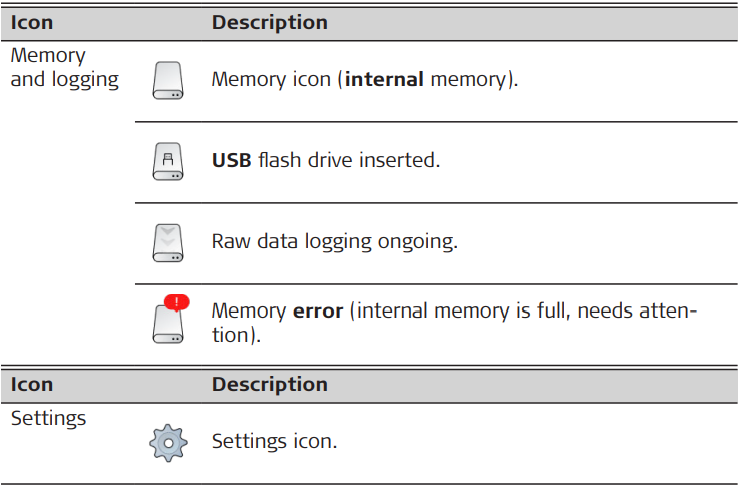

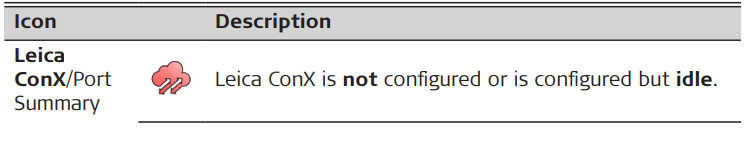

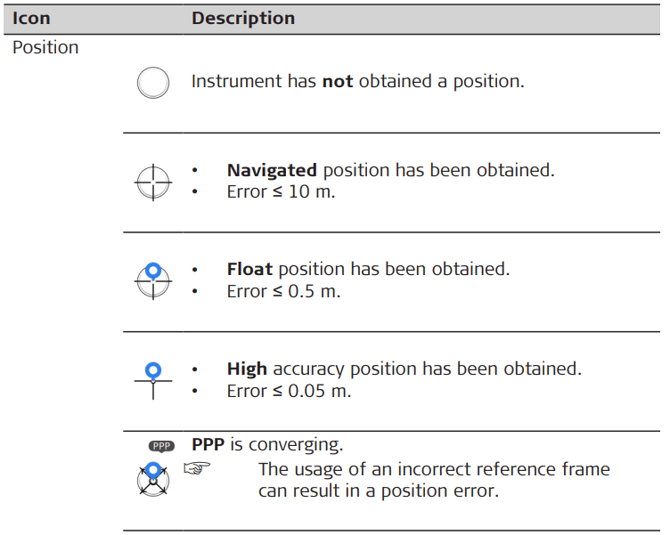

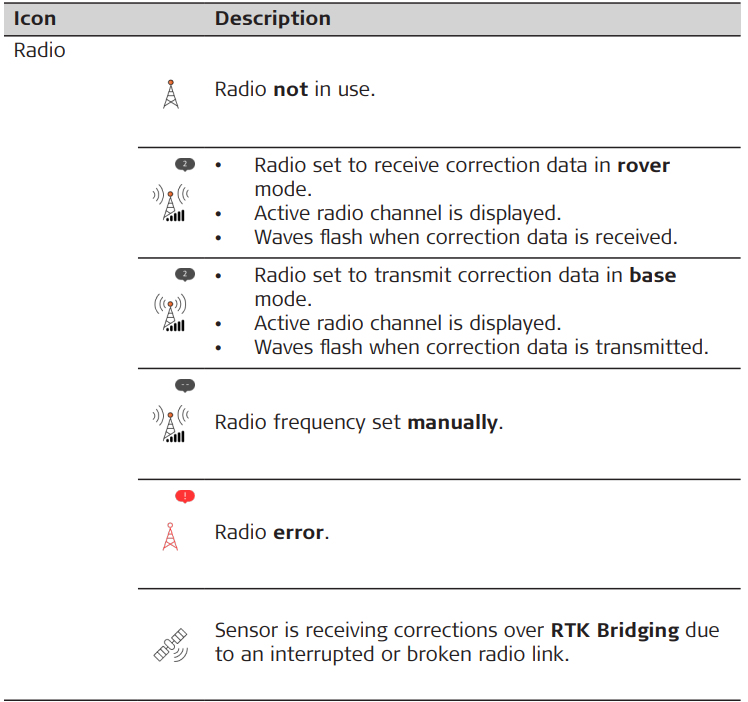

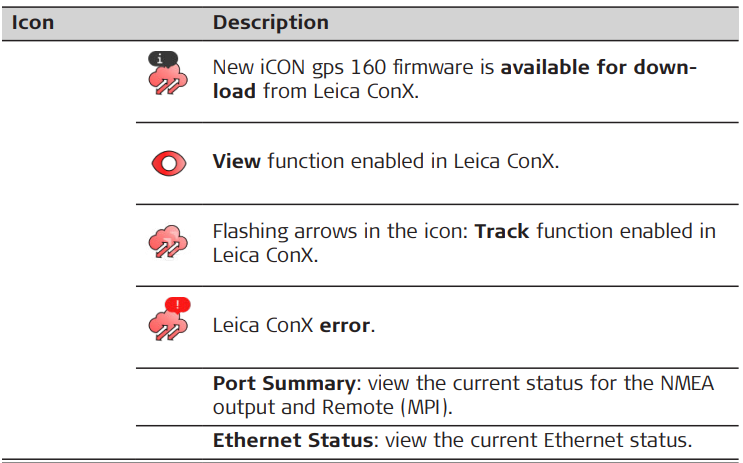

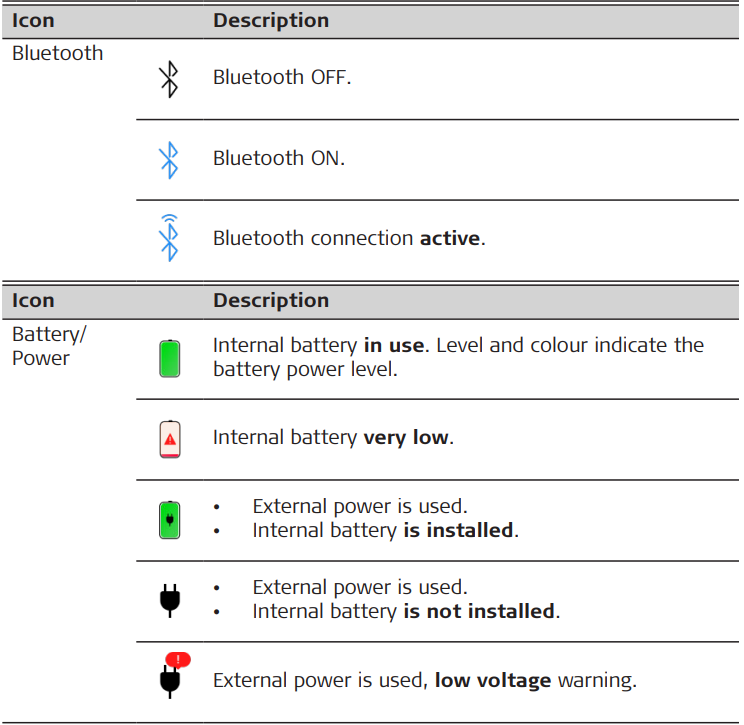

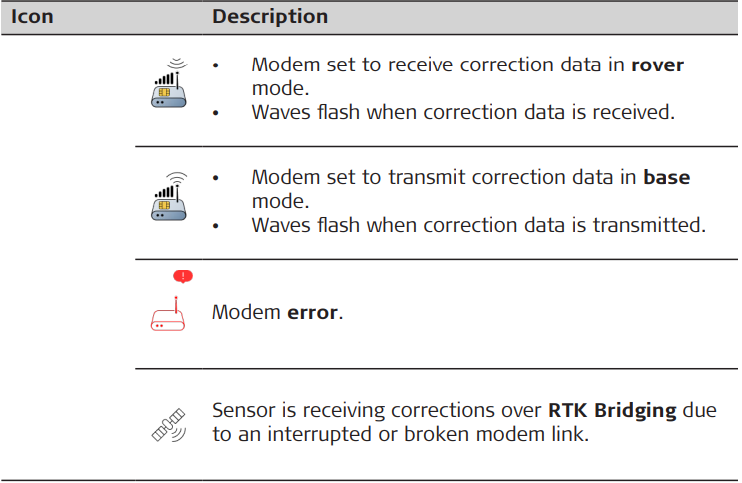

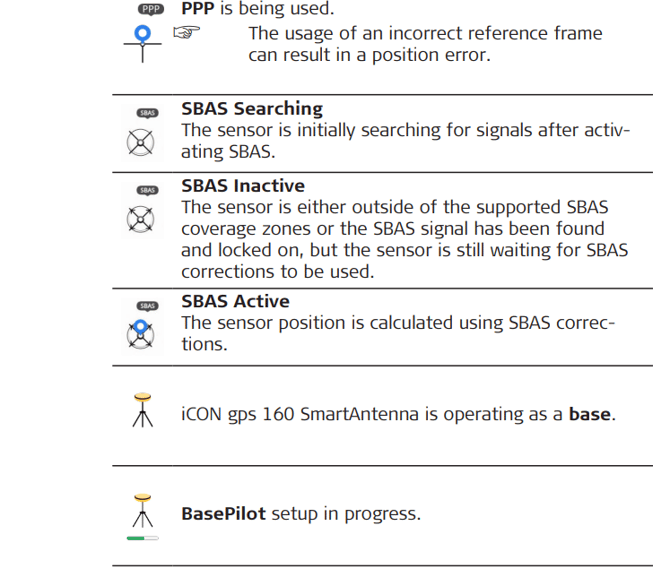

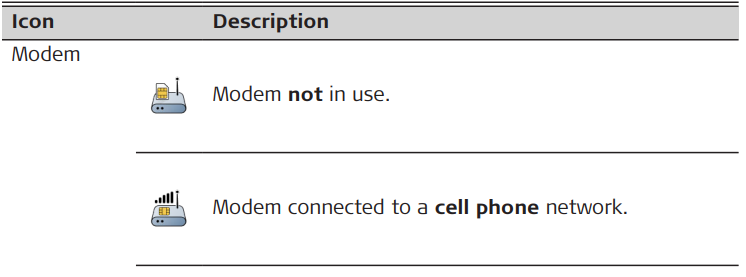

Additional icon information
The menu icons on the display provide additional information related to basic instrument status.
