Local Base Station setup - Permanent
Local Base Station setup, Permanent step-by-step
☞ Ensure Satel Radio CCD22 is correctly installed and configured.
☞ The site/office/container must be prepared to mount the CTB102 tribrach to, in a way, to ensure a clear view of the sky for the GNSS antenna.

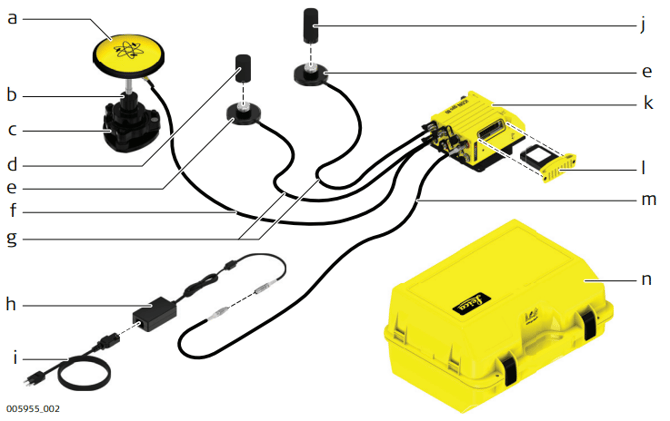

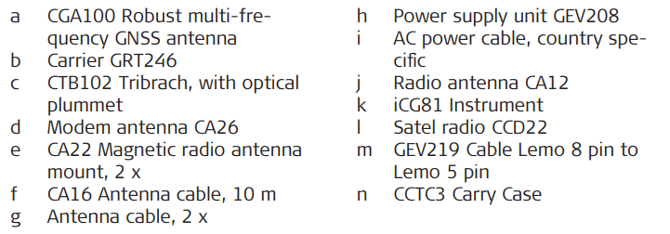

1. Setting Up the Equipment
• Mount and level the CTB102 tribrach onto the site/office/container.
• Place and lock the GRT246 carrier into the tribrach.
• Screw the CGA100 GNSS antenna onto the carrier.
• Attach the CA22 magnetic radio antenna mount together with the CA12 radio antenna to the site/office/container.
• Attach the second CA22 magnetic radio antenna mount together with the CA26 modem antenna to the site/office/container.
☞ The higher the radio antennas are mounted, the better the radio transmission range.
• Place the iCG81 instrument onto a prepared suitable location.
• Use the Antenna cable to connect the CA12 radio antenna to the RADIO port of the iCG81 instrument.
• Use the second Antenna cable to connect the CA26 modem antenna to port P2 of the iCG81 instrument.
• Use the CA16 Antenna cable to connect the GNSS antenna to port ANT1 of the iCG81 instrument.
• Use the GEV219 power cable to connect the Power supply unit to port P1 of the iCG81 instrument.
• Connect the AC power cable to the Power supply unit GEV208 and plug it into the power outlet.
• Turn on the instrument.
2. Perform a Base Station setup on the iCG81.
☞ Refer to 6.1 Base Setup for further information.
