- Tap to aim roughly.
- Swipe up/down/left/right to trigger a bigger movement.
- Move and release the crosshair to aim precisely.
- Move the crosshair to the movement area to start continuous movement.
- Pinch with two fingers or double tap to zoom in/out.
| Normal state | Move crosshair button pressed |
 |
 |

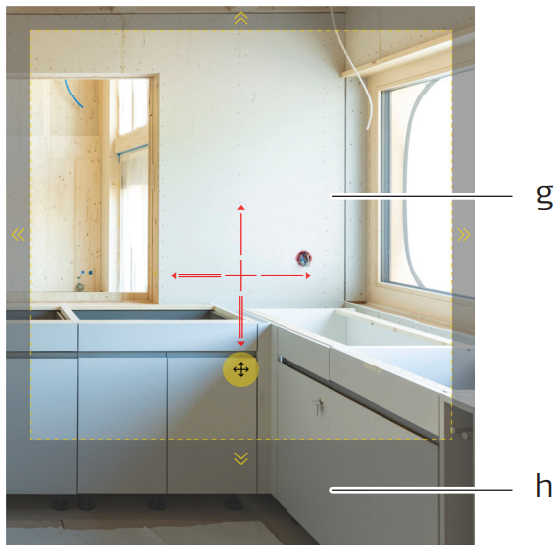

a) Precise aiming crosshair
b) Move the crosshair
c) Fast toggle between 1x or 8x zoom
d) Zoom in
e) Zoom out
f) Show PANORAMA.
g) Precise aiming area
h) Continuous movement area
☞ An instrument with a camera is required.
☞ The crosshair blinks yellow if the device is not ready to measure.
☞ The crosshair is not visible when tracking a target.
☞ A rough aiming area is displayed when aiming with Laser is active.
☞ Switch the points on or off in the VIEW of the Live view.

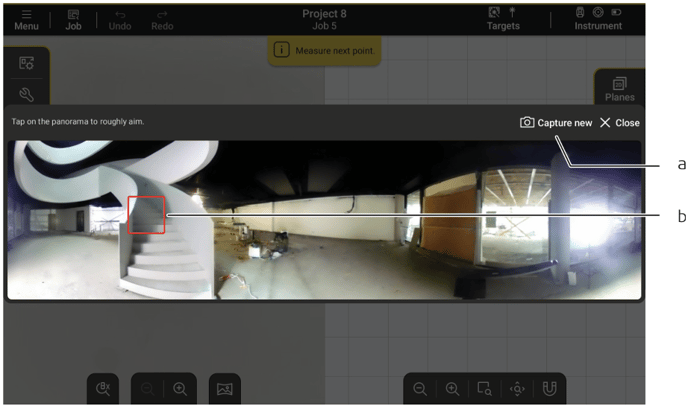

Panorama
- 360° image of the surrounding of the instrument.
- Tap the desired location to move the instrument with high speed.
a) Capture a new panorama
b) Rough aiming area
How to access and use
- Go to the Measure or the Layout mode.
- Tap
on the bottom of the Live View view.
☞ Switch ON/OFF asking for Panorama in System settings.
☞ Only available for iCS20 and iCS50.
☞ When the target is lost, tap on the panorama to start a search.
