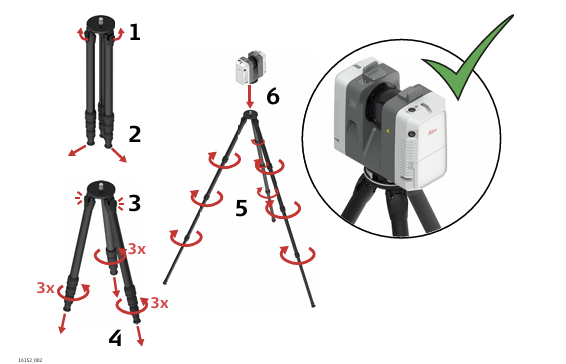

Instrument setup step-by-step
- Unlock the locks at the top of the legs.
- Unfold the legs so that the locks lock in their maximum position.
- Move the legs back to a fixed position so that the locks click into place.
- Unscrew the locking screws and extend the tripod legs to allow for a comfortable working posture.
➜ Only unscrew the locking screws by half a revolution. - Tighten all locking screws at the tripod legs.
➜ Remove the rubber caps at the bottom of the tripod legs to uncover spikes for usage on a soft ground.
➜ Do not use the spikes on slippery ground. - Place the instrument on the quick release mount and secure it.
