• Only use an official Leica USB stick that is designed for the TS20.
• Keep the USB stick dry.
• Use it only within the specified temperature range.
• Protect the USB stick from direct impacts.
Failure to follow these instructions could result in data loss and/or permanent
damage to the USB stick.

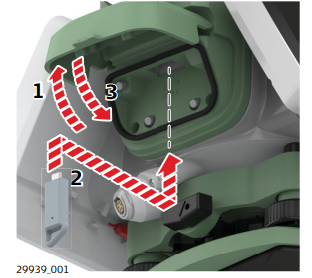

Insert a USB stick step-by-step
☞ The USB stick is inserted into the USB-C port inside the communication compartment of the instrument.
1. Open the lid of the communication compartment to access the communication ports.
2. Slide the USB stick into the USB-C port until it clicks into position.
☞ Do not force the USB stick into the port.
If desired, store the lid of the USB stick in the instrument container.
3. Close the lid to lock the compartment.
Remove a USB stick step-by-step
☞ To ensure safe removal of the USB stick, the instrument must either be powered off, or the USB stick must be ejected from within the Leica Captivate field software.
☞ Removing the USB stick unsafely may result in data loss or damage to the file system.
1. If Leica Captivate is running, from within the Home screen press Eject USB (Fn F2).
2. Open the lid of the compartment and pull the USB stick out from the port.
