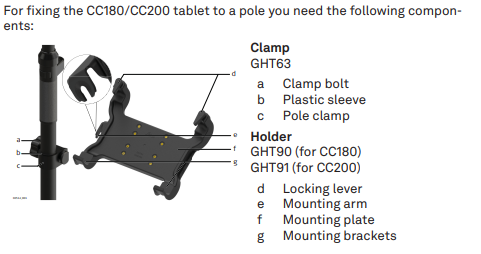

Components of GHT63 clamp and GHT90/GHT91 holder
Fixing the CC180/CC200 tablet and GHT90/GHT91 holder to a pole step-by-step
☞ For an aluminium pole, fit the plastic sleeve to the pole clamp.
1. Insert the pole into the clamp hole.
2. Attach the holder to the clamp using the clamp bolt.
3. Adjust the angle and the height of the holder on the pole to a comfortable position.
4. Tighten the clamp with the clamp bolt.
5. Before placing the CC180/CC200 tablet onto the mounting plate, ensure that the locking lever is set to the unlocked position (see illustration).
6. Lower the left side of the tablet and slide it from right to left into the mounting brackets of the holder.
7. After placing the tablet onto the mounting plate, set the locking lever to the locked position (see illustration).
Detaching the tablet from the holder/pole step-by-step
1. Set the locking lever of the GHT90/GHT91 holder to the unlocked position.
2. Lift the right side of the tablet and slide the tablet to the right and out of the holder.
