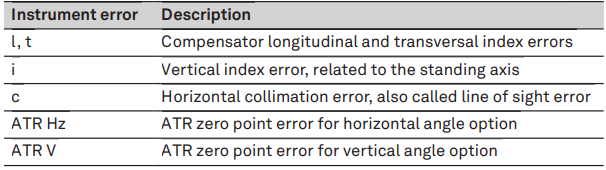

Description: The combined adjustment procedure determines the following instrument errors in one process
Combined adjustment procedure step-by-step: The following table explains the most common settings.
1. Leica Captivate - Home: Settings\TS instrument\Check & adjust
2. Check & Adjust
Select the option: Check & adjust the compensator, index error, line
of sight error & automatic target aiming
3. Next

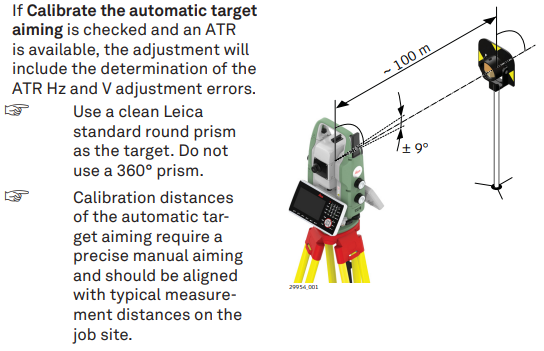

4. Face I measurement
5.

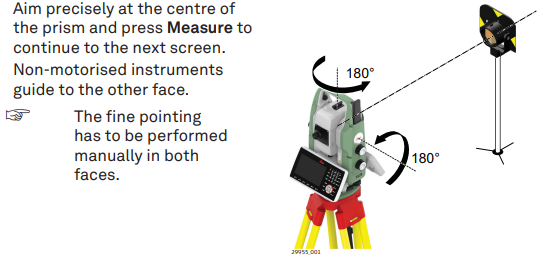

6. Face II measurement
Measure to measure the same target in the other face and to calculate the instrument errors.
☞ If one or more errors are bigger than the predefined limits, the procedure must be repeated. All measurements of the current run are rejected and none of them is averaged with the results from previous runs.
7. Adjustment Status
Number of measurements: Shows the number of runs completed. One run consists of a measurement in face I and face II.
l Component quality (1 σ) and similar lines show the standard deviations of the determined adjustment errors. The standard deviations can be calculated from the second run onwards.
☞ Achieved adjustment qualities should be aligned with the expected measurement accuracies. In order to leverage aiming errors it is advisable to measure at least three runs.
8. Next to continue with the check & adjust procedure.
9. Follow the proposal Add another calibration loop until three runs have been measured. Next and continue with step 4.
OR
Select Finish the calibration & store the results to finish the calibration process. Next to view the adjustment results.

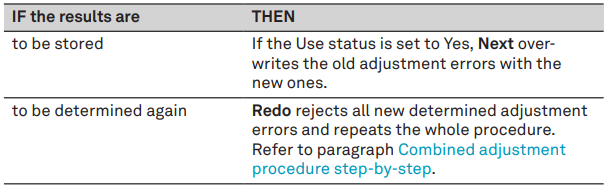

10. Select Finish to accept the results. No more runs can be added later.
OR
Select Redo to decline all measurements and to repeat all calibration runs.
OR
Back returns to the previous screen.
