Range of target aiming/target locking
☞ The maximum range depends on the atmospheric condition. Rain, strong sunlight or severe heat shimmer can decrease the maximum range.
Shortest measuring distance, 360° prism (Target aiming): 1.5 m
Shortest measuring distance, 360° prism (Target locking): 5 m
ATR accuracy with the GPR1 prism

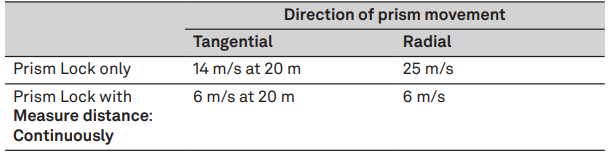

Maximum speed in lock mode
☞ A tangential movement means the prism is passing by the instrument at the specified distance. A radial movement means the prism is moving away from or towards the instrument in the line of sight direction.

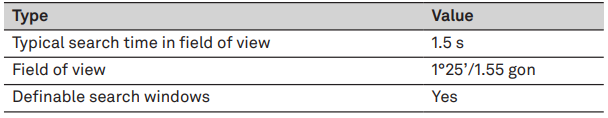

Searching
Characteristics
