Step 5: Verify mount side configuration.
During power-up and side configuration:

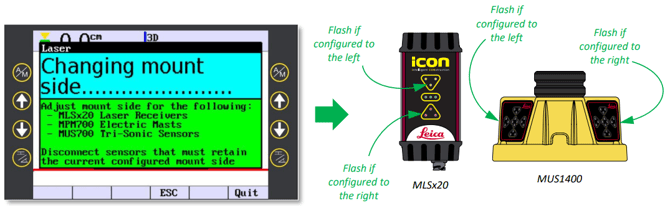

• MLSx20 sensor: The top LED will flash for two seconds if mount side is configured to the left. The bottom LED will flash for two seconds if mount side is configured to the right.
• MUS1400 sensor: The left LED will flash two seconds if mount side is configured to the left. The right LED will flash for two seconds if mount side is configured to the right.
• MPM700 mast: No flash indication for mount side configuration.
Your 3D solution
Workflows in this chapter focus on your 3D machine control solution.
The first five pages gives you essential background information, intended to help you better understand and use the workflows described further on.
3D solution content:
Touch navigation
GNSS basics
• Workflow 01: Find your project and models
• Workflow 02: Select and use references from run screen
• Workflow 03: Offset a model reference
• Workflow 04: Offset individual references
• Workflow 05: Enter temporary mast height
• Workflow 06: Change "height tool point"
• Workflow 07: Change “side tool point”
• Workflow 08: Select and use "height reference"
• Workflow 09: Select and use "side reference"
• Workflow 10: Daily machine check-in
• Workflow 11: Adjust blade wear
• Workflow 12: Activate auto mode
• Workflow 13: Create point logs
• Workflow 14: Synchronize files
