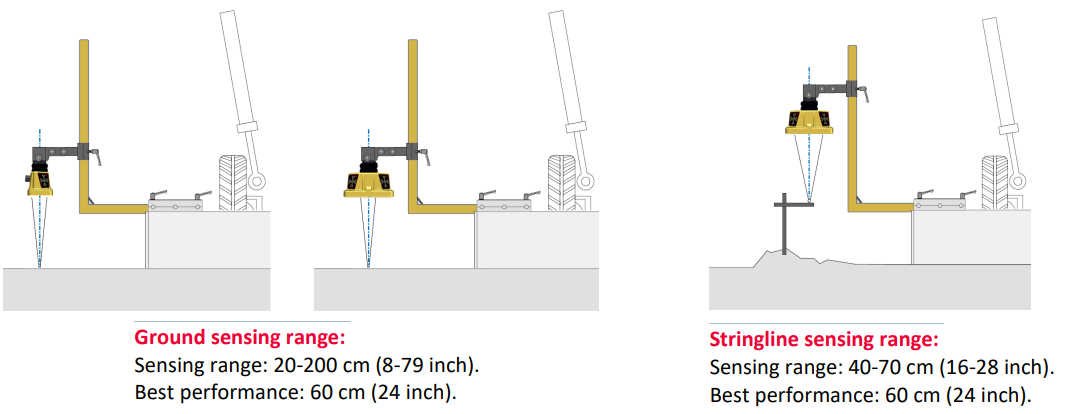

Step 1: Mount the Tri-Sonic at appropriate height, for maximum performance, according to selected reference surface (See illustrations below for sensing ranges).

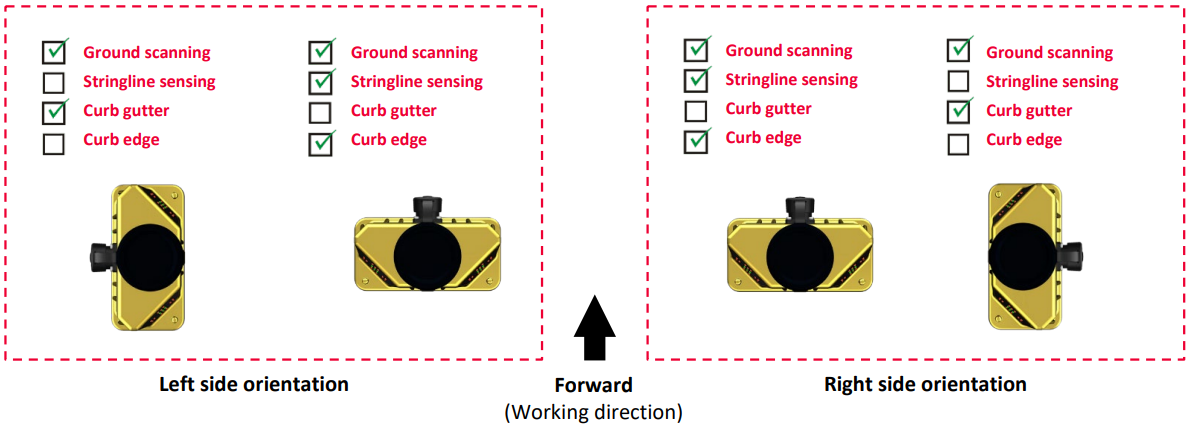

Step 2: Orient the Tri-Sonic perpendicular or parallel to machine working direction, depending on the reference being used (The connector should always face away from the operator, to the side or forward, to allow LED indicators to be visible from cab).
