Workflow 4.7. Change side tool point (2D/3D)

The side tool point defines where MC1 looks for horizontal guidance, when a side reference is selected.

See also Workflow 9.2. Select and use a side reference (3D).

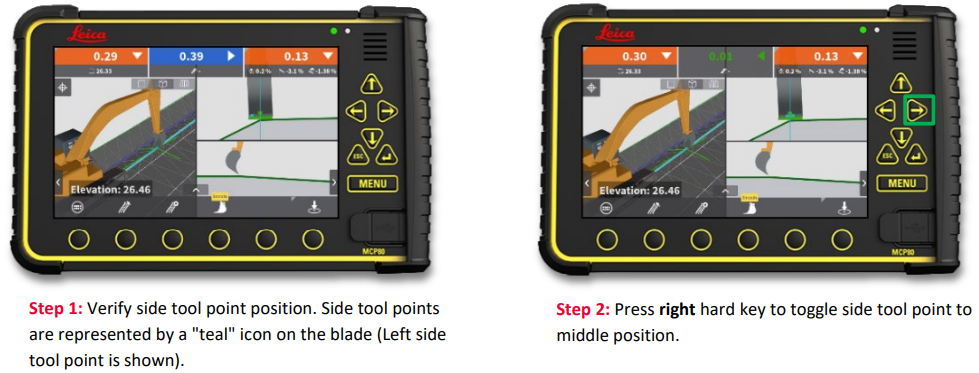

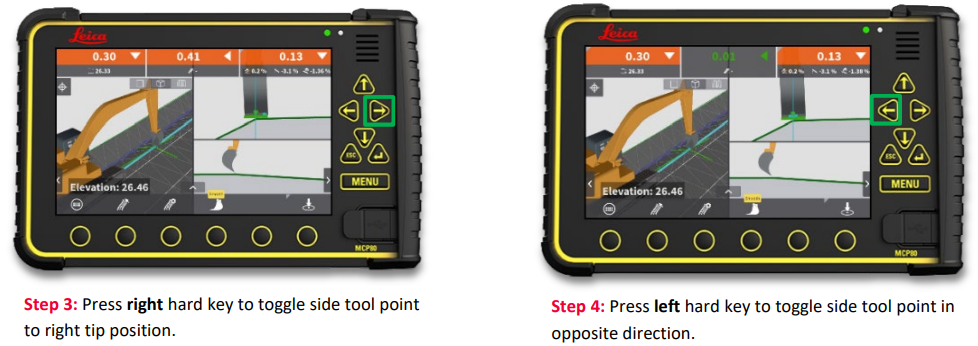

The left and right hard keys on the MCP80 panel toggle selected side tool point.
