Workflow 4.5. Change height tool point (2D/3D)

The height tool point defines where MC1 looks for elevation guidance, when a height reference is selected.

See also Workflow 9.1. Select and use a height reference (3D).

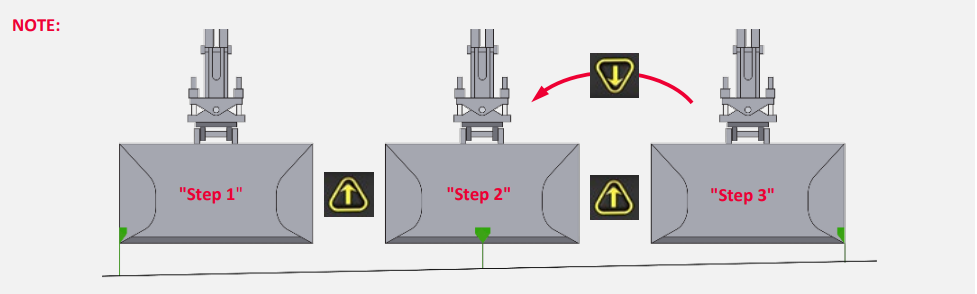

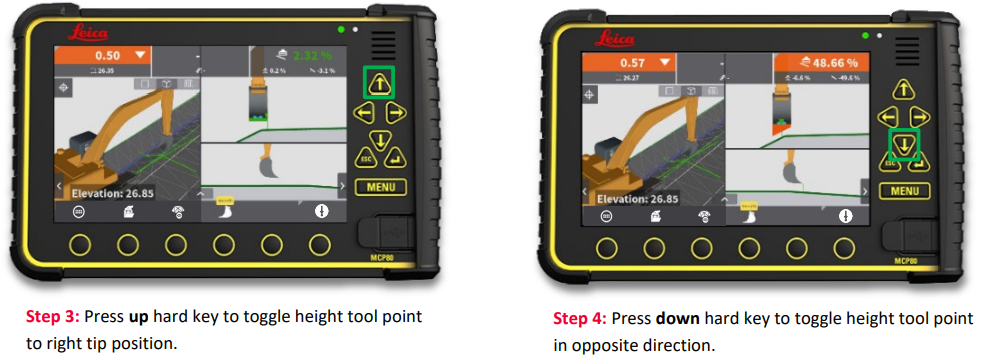

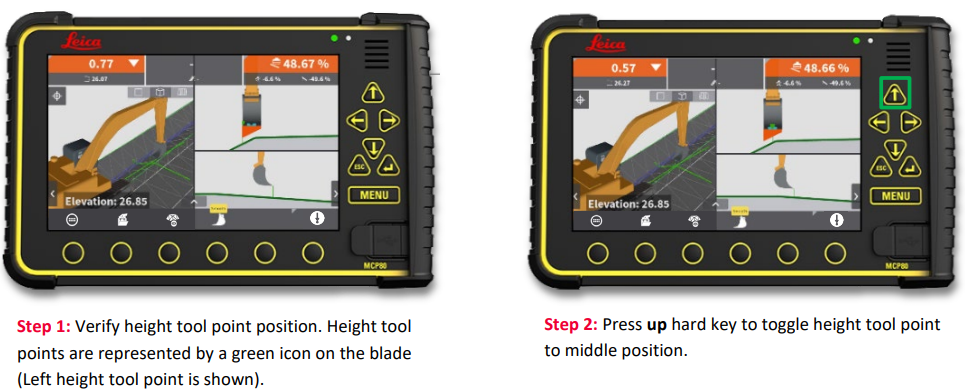

The up and down hard keys on the MCP80 panel toggle selected height tool point.
