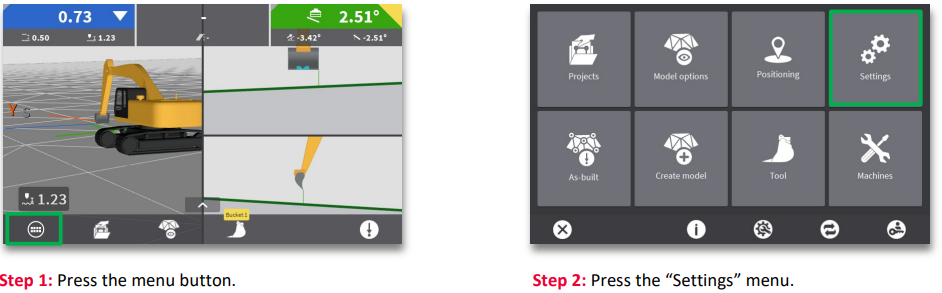

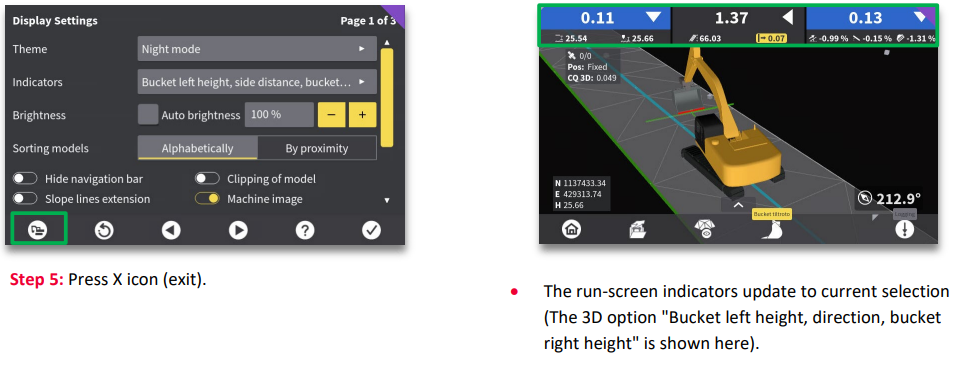

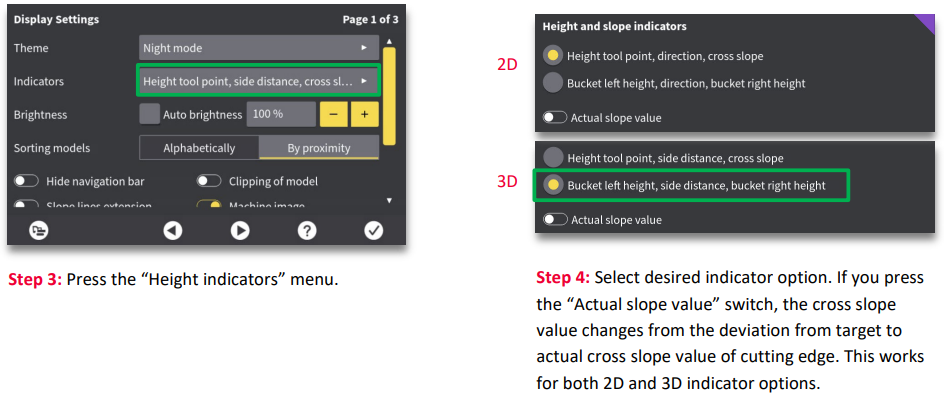

You can choose between two indicator options for the MC1 run-screen. This is true for both a 3D and a 2D solution. The next pages provide a visual overview of the two options for each solution, and tells you step by step how to select them. Settings for colors and tolerances are configured in "Main Menu > Tool > Tolerances.

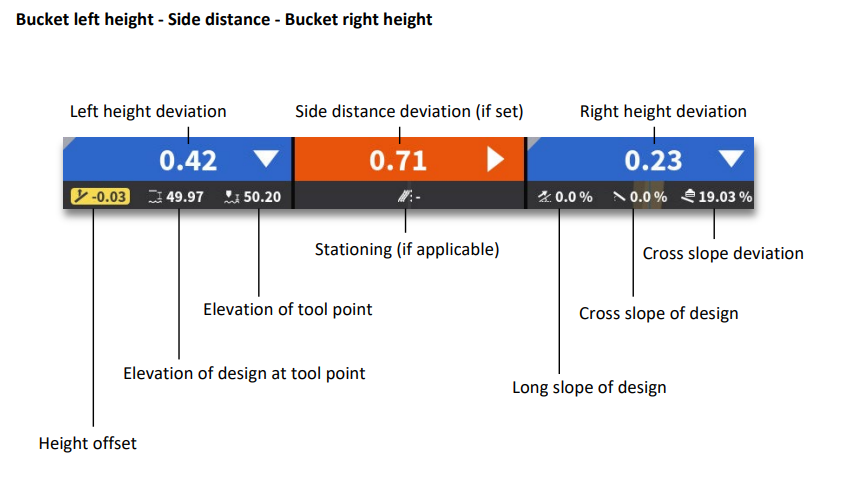

Indicator options for a 3D solution:

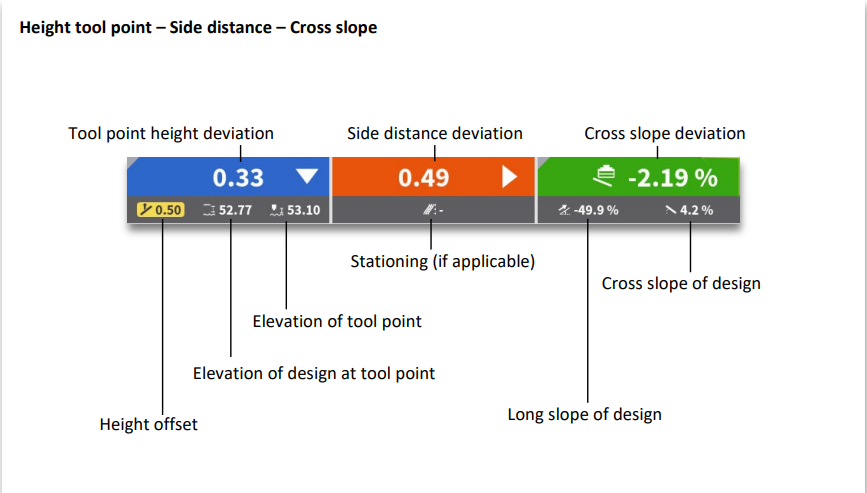

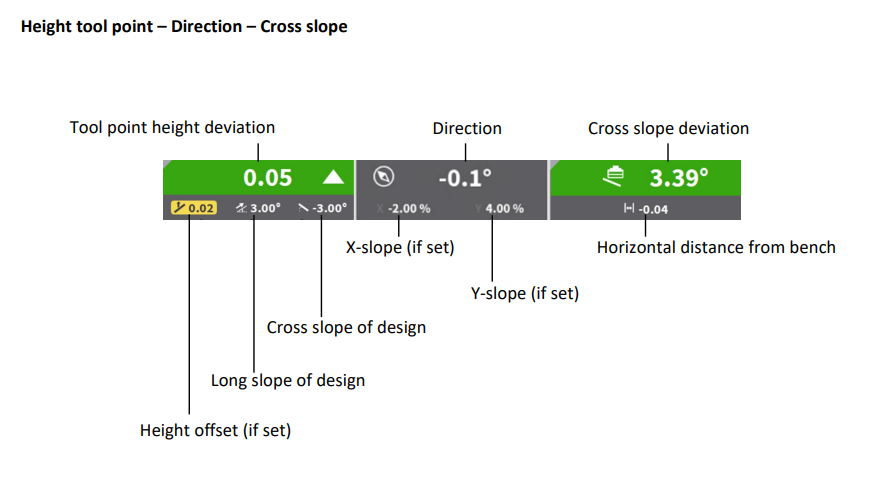

Indicator options for a 2D solution:
The run-screens shown are from a 3D solution, but the workflow also works for a 2D solution.
