Workflow 11.8. Use prism search to re-connect a TPS (3D)

When an obstacle blocks the line of sight between TPS and machine prism, the TPS loose connection to MC1.

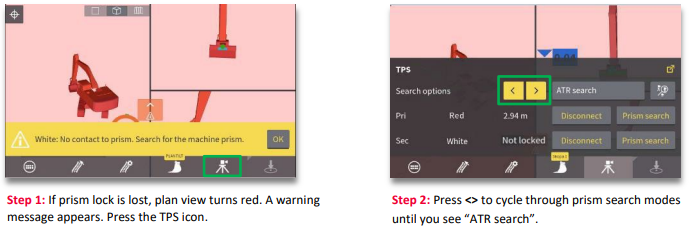

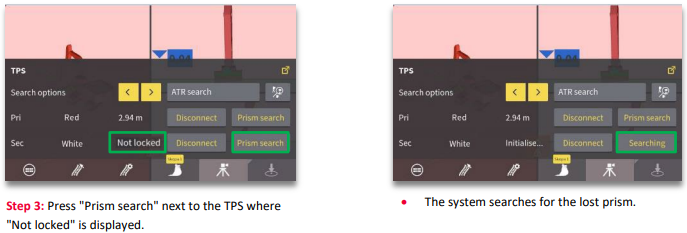

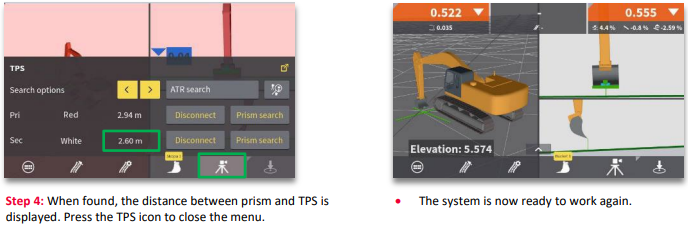

The TPS is often able to re-connect by itself if the machine prism stays in the same general area. But, if the TPS does not reconnect automatically, you must perform a prism search to re-connect.
