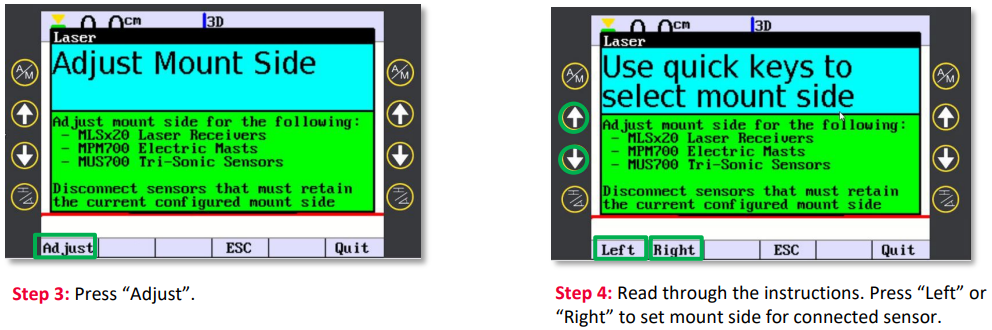

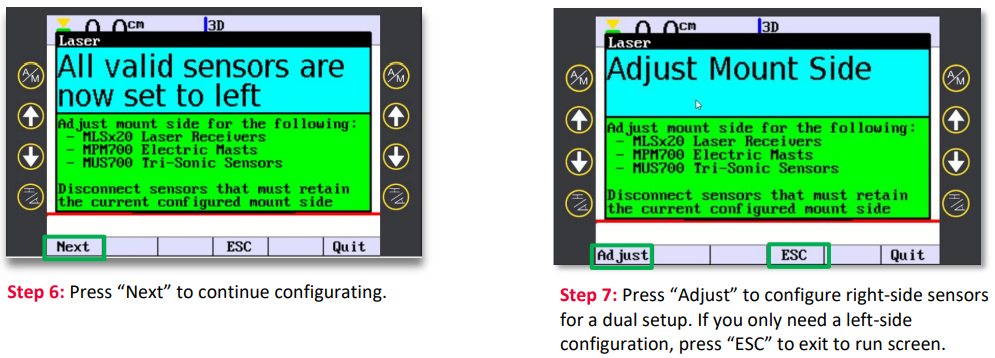

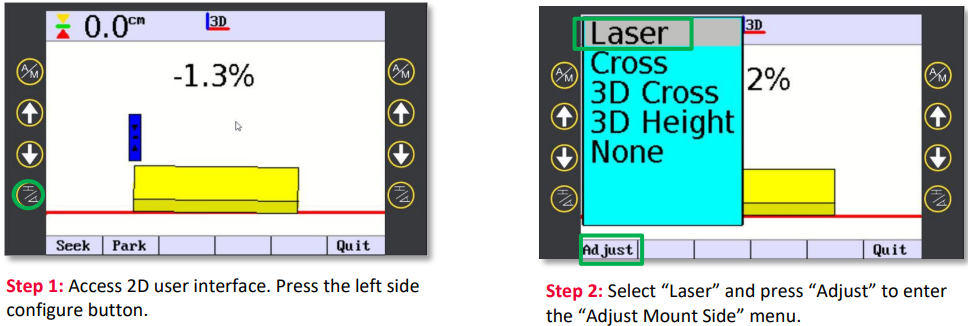

This workflow is only relevant for systems that does not have an MJB130X junction box. If you do have an MJB130x junction box, then the sensors must be set to left. The workflow describes how to program 2D sensors for left or right-side mounting for a single or dual sensor setup. It is temporarily necessary to go through these steps if you do not have the MJB130x junction box installed in the system.
Supported sensors (minimum software requirement: CB14 on MCP80 v. 2.91 and CB14 on SJB22 v. 4.2.0):
• MLS720 laser receiver (serial numbers after 20209488 / 06.01.2020).
• MLS820 laser receiver.
• MUS1400 tri-sonic sensor.
• MPM700 electric mast (serial numbers after 30101870 / 14.11.2022).
Older sensors can be used only as a left sensor alone or with a new sensor as the right.

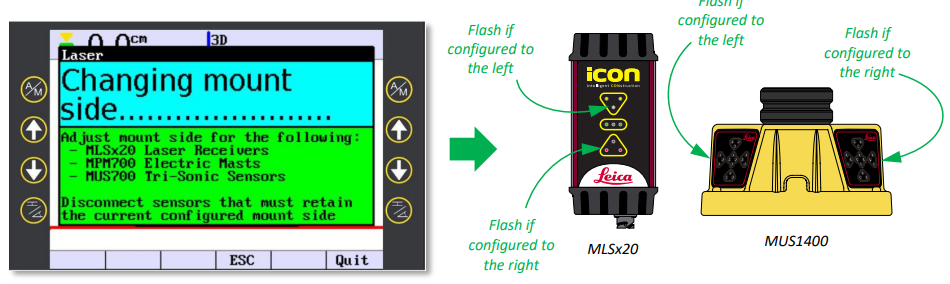

Step 5: Verify mount side configuration. During power-up and side configuration:
• MLSx20 sensor: The top LED will flash for two seconds if mount side is configured to the left. The bottom LED will flash for two seconds if mount side is configured to the right.
• MUS1400 sensor: The left LED will flash two seconds if mount side is configured to the left. The right LED will flash for two seconds if mount side is configured to the right.
• MPM700 mast: No flash indication for mount side configuration.

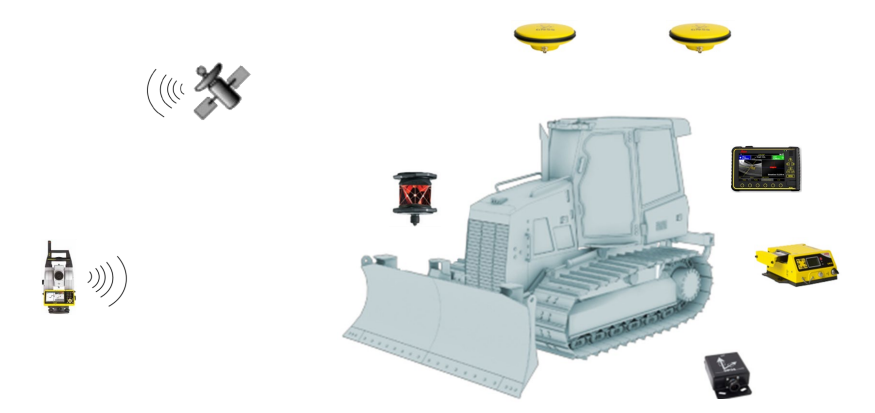

Your 3D solution: Workflows in this chapter focus on your 3D machine control solution. The first five pages gives you essential background information, intended to help you better understand and use the workflows
described further on.
3D solution content:
• Touch navigation
• GNSS basics
• Workflow 01: Find your project and models
• Workflow 02: Select and use references from the run screen
• Workflow 03: Offset a model reference
• Workflow 04: Offset individual references
• Workflow 05: Enter temporary mast height
• Workflow 06: Change "height tool point"
• Workflow 07: Change "side tool point"
• Workflow 08: Select and use "height reference"
• Workflow 09: Select and use "side reference"
• Workflow 10: Daily machine check-in
• Workflow 11: Adjust blade wear
• Workflow 12: Activate auto mode
• Workflow 13: Create point logs
• Workflow 14: Synchronize files
