Workflow 04: Understanding CoPilot modes

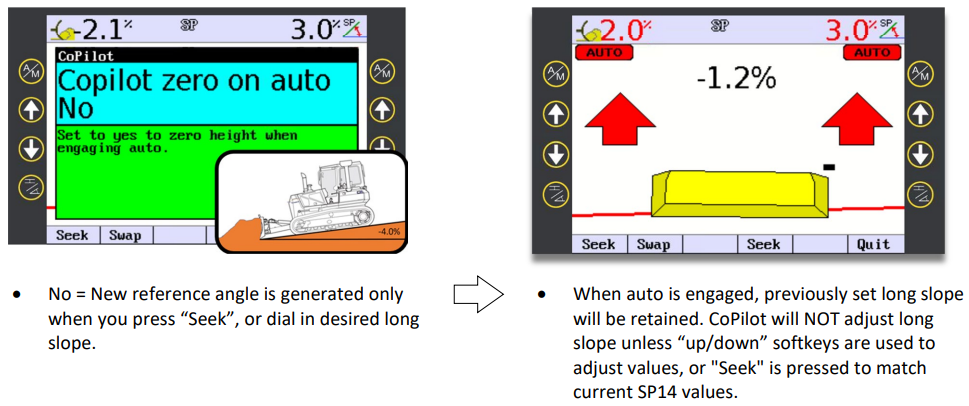

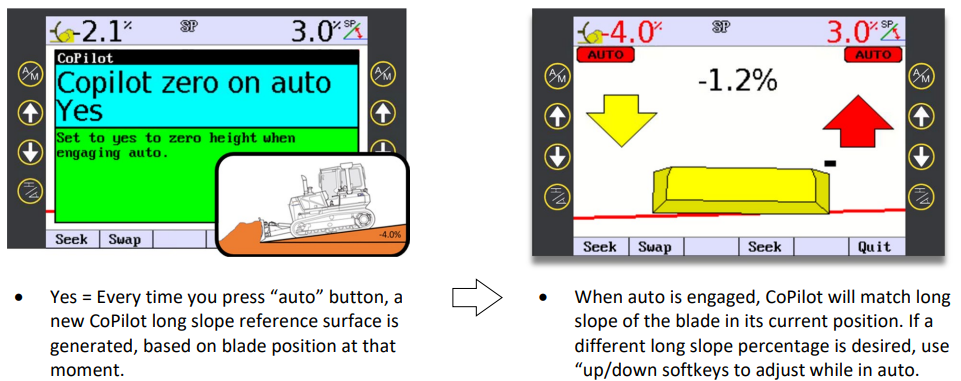

CoPilot uses information from the SP14 sensor when storing long slope values of your reference surface. You need to set the benchmark (zero) value with the blade itself. There are two ways to use CoPilot: 01) Zero on Auto YES and 02) Zero on Auto NO. In both modes, when cross slope side is put into "Auto", cross slope maintains the value that was dialled in.
