• Keep the card dry.
• Use it only within the specified temperature range.
• Do not bend the card.
• Protect the card from direct impacts.
Failure to follow these instructions could result in data loss and/or permanent damage to the card.

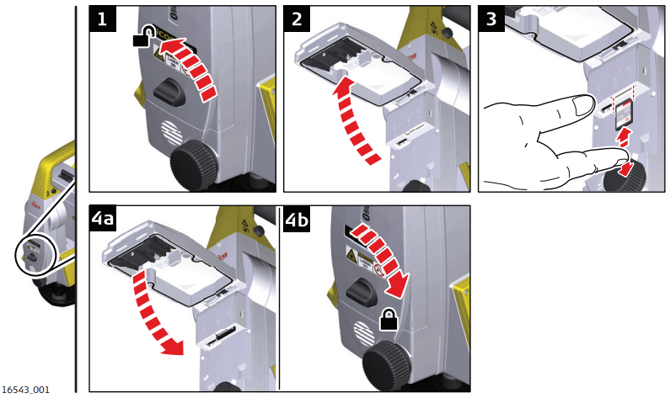

Insert and remove an SD card step-by-step
☞ The SD card is inserted into a slot inside the Communication side cover of the instrument.
- Turn the knob on the Communication side cover to the vertical position to unlock the communication compartment.
- Open the lid of the communication compartment to access the communication ports.
- • To insert the SD card, slide it firmly into the SD slot until it clicks into position.
• To remove the SD card, gently press on the top of the card to release it from the slot.
☞ The card must be held with the contacts at the top and facing toward the instrument.
☞ Do not force the card into the slot. - Close the lid and turn the knob to the horizontal position to lock the communication compartment.

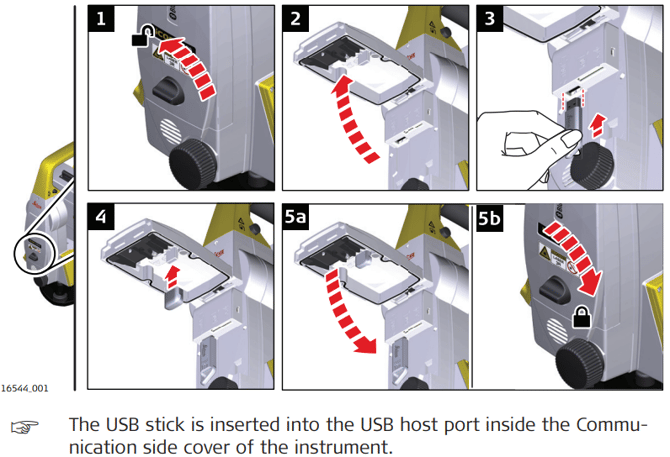

Insert and remove a USB stick step-by-step
- Turn the knob on the Communication side cover to the vertical position to unlock the communication compartment.
- Open the lid of the communication compartment to access the communication ports.
- Slide the USB stick with the Leica logo facing you firmly into the USB host port until it clicks into position.
☞ Do not force the USB stick into the port. To remove the USB stick, slide the USB stick out of the port. - If desired, store the lid of the USB stick on the underside of the compartment lid.
- Close the lid and turn the knob to the horizontal position to lock the compartment.
